Aluminium compression profile with or without EPDM sealing tape. Available in various models and dimensions.
Click on one of the types below for technical drawings and specifications
CAD | Specification | Height | Cover height | Overhang below | ||
---|---|---|---|---|---|---|

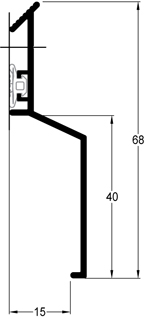

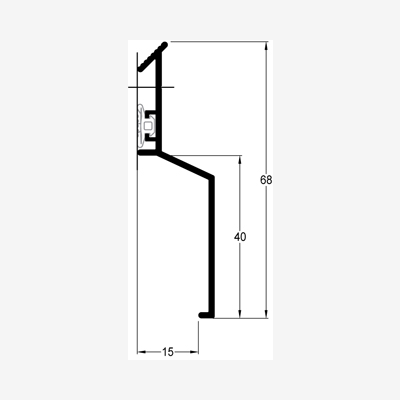

![]() ![]() | 151607 | - | 68 mm | mm | 15 mm | |

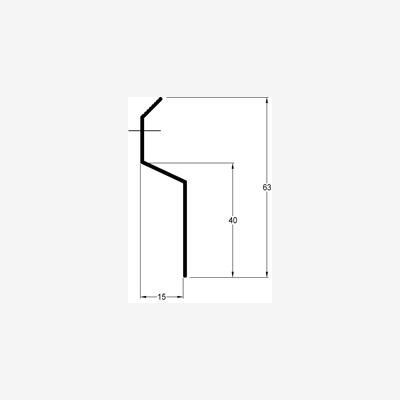

![]() ![]() | 151613 | - | 63 mm | mm | 15 mm | |

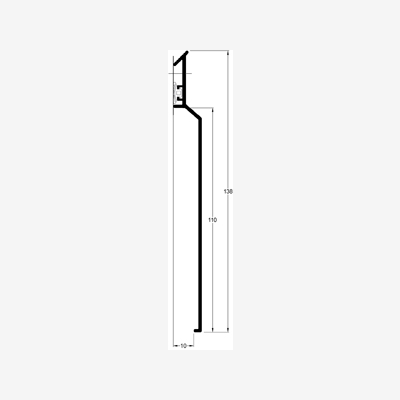

![]() ![]() | 151681 | - | 138 mm | mm | 10 mm | |

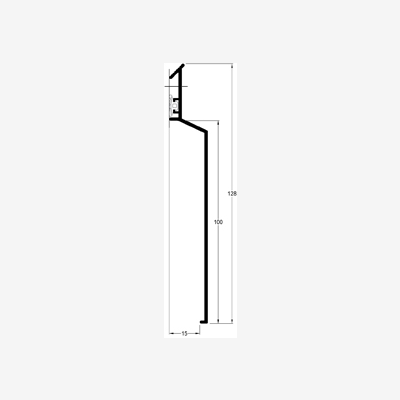

![]() ![]() | 151682 | - | 128 mm | mm | 15 mm |
View our product warranty terms here
ROVAL-SOLIN TYPE RF
Aluminium compression profile without sealing tape. Available in various dimensions.
ROVAL-SOLIN TYPE RF/E
Aluminium compression profile with EPDM sealing tape. Available in various dimensions and models.
Contact us or request price quotation directly.
