    Roval-77®

    Roval-77®

    Roof edge specially developed for synthetic roof covering. Can also be used with bitumen roof covering. In that case the clamping profile is not needed. The trim for this type of roof edge is 41 mm. Screw holes are provided as standard.
    Lengts of 2500 mm. Available in brute, anodized or enamelled finishes.

    Item overview

    Click on one of the types below for technical drawings and specifications

    CAD Specification Profile height Profile width

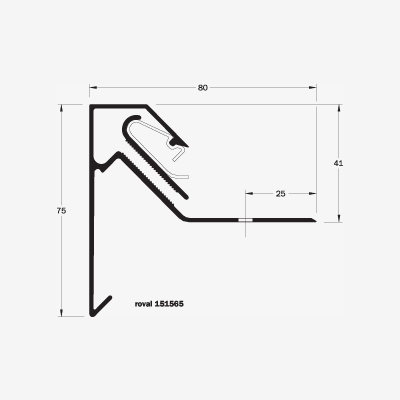

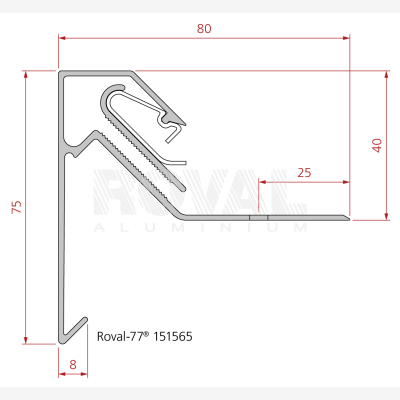

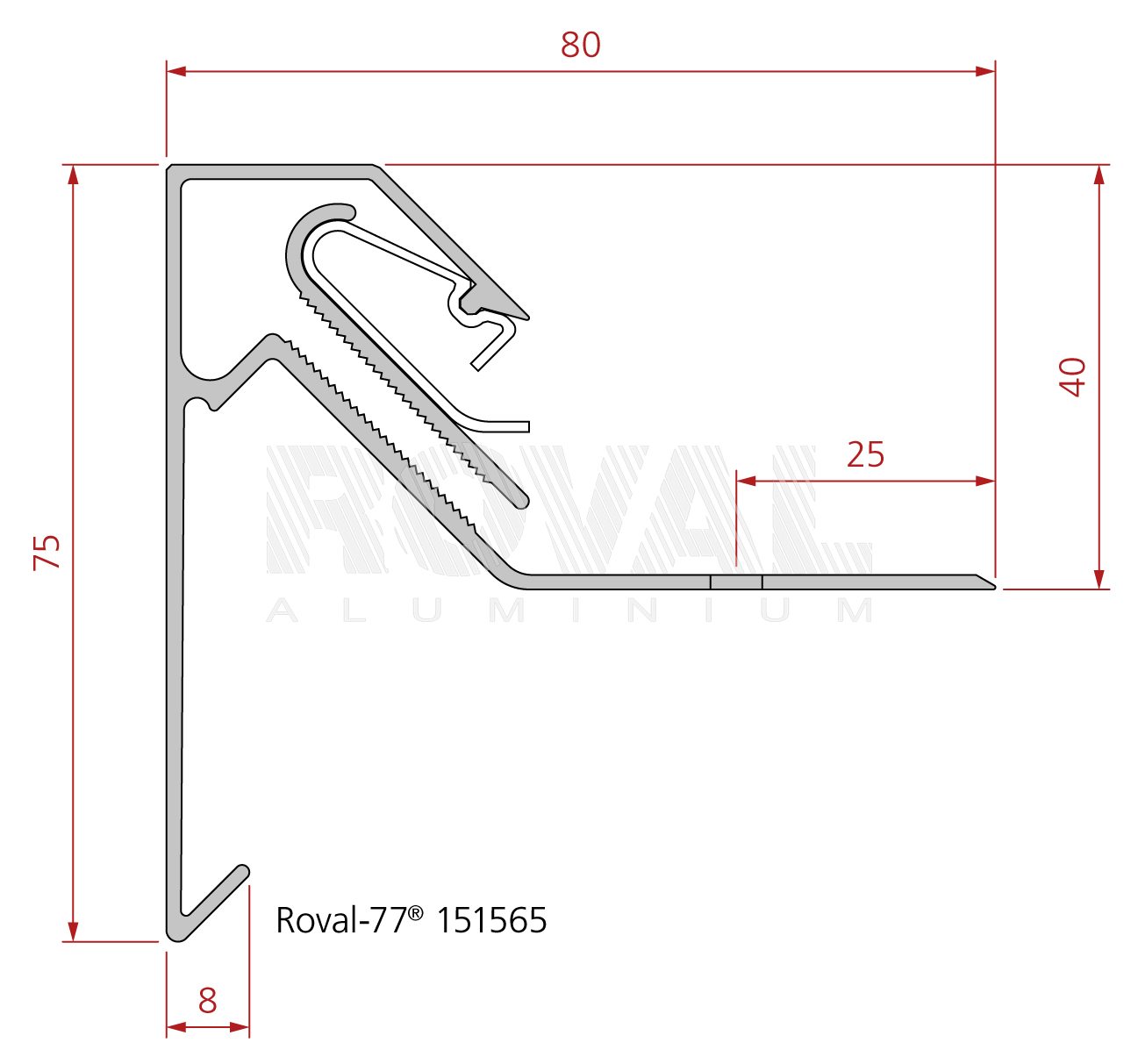

    151565 151565 151565 151565 CAD - 75 mm 80/72 mm

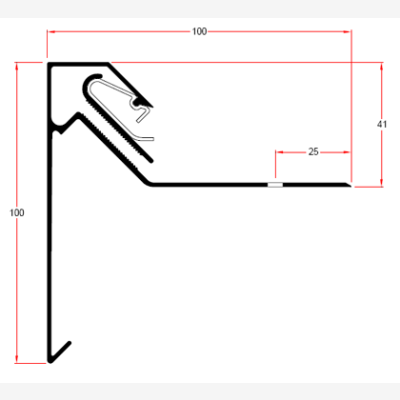

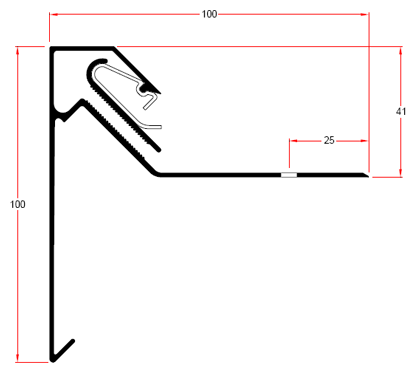

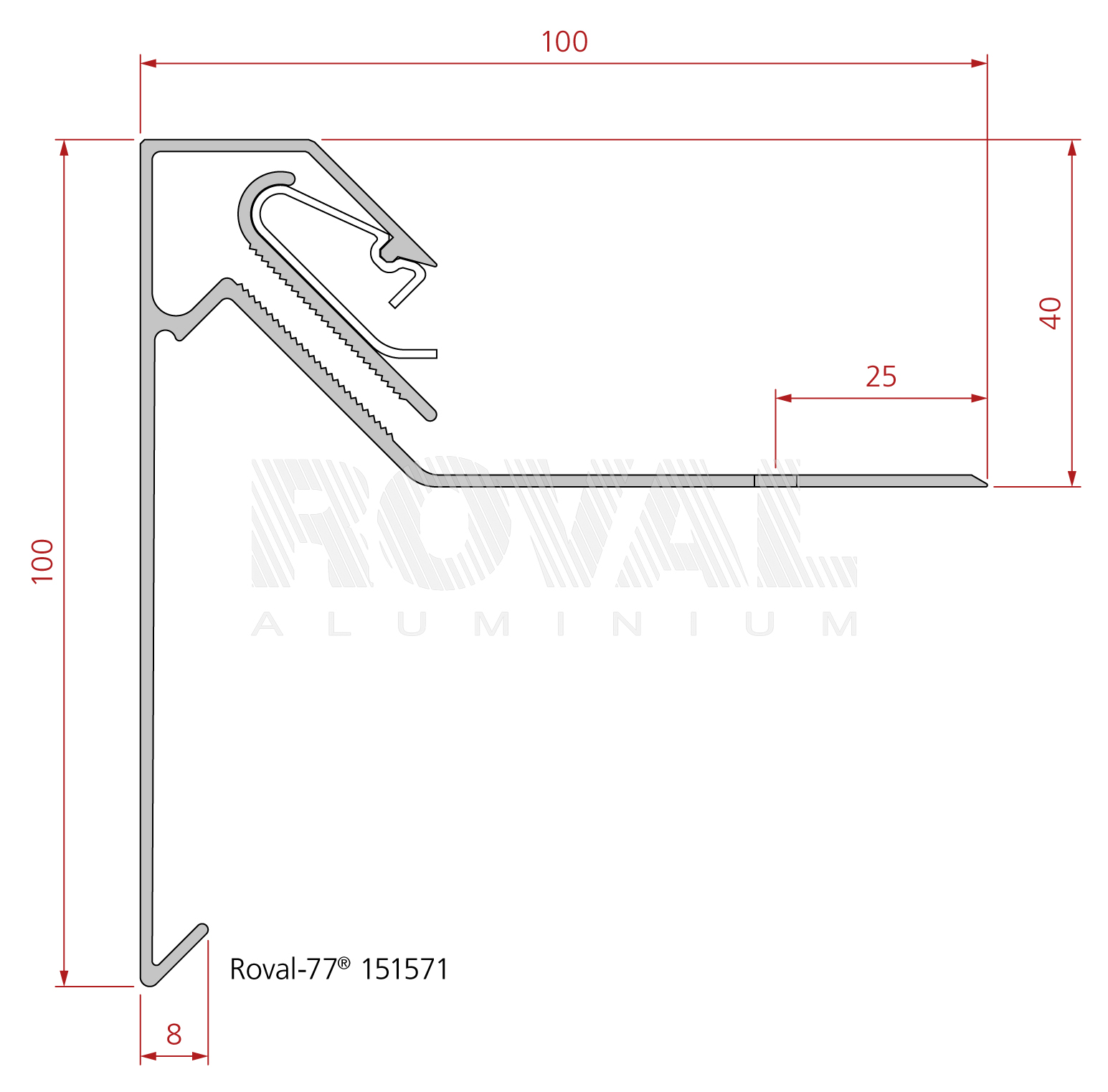

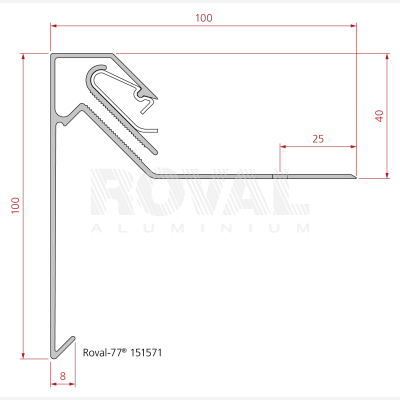

    151571 151571 151571 151571 CAD - 100 mm 100/92 mm

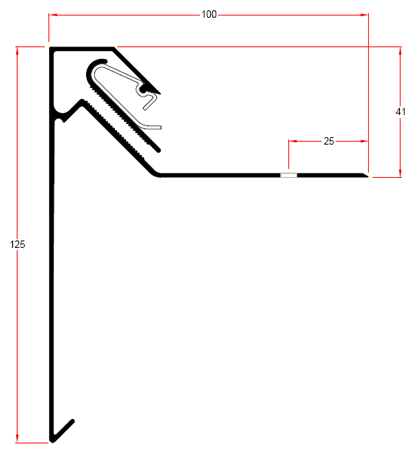

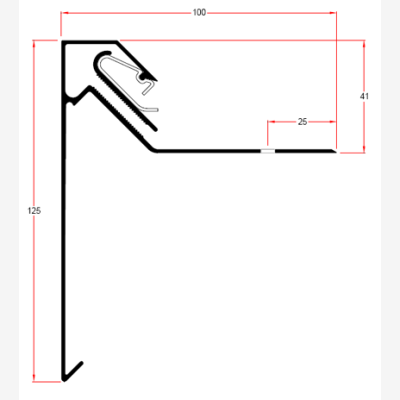

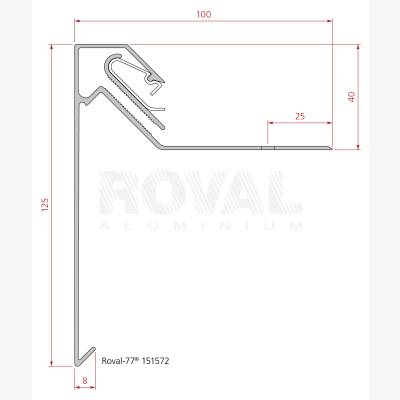

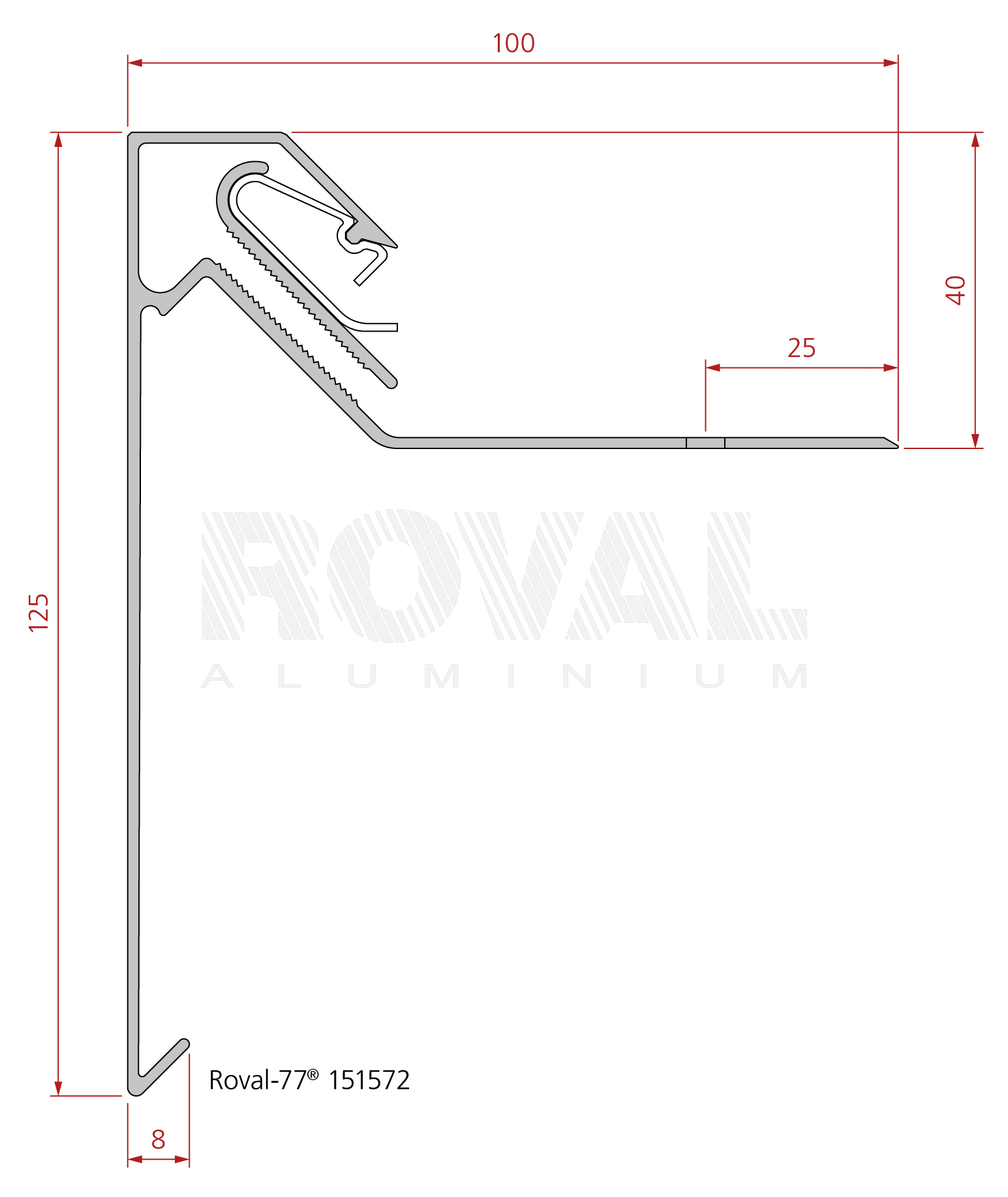

    151572 151572 151572 151572 CAD - 125 mm 100/92 mm

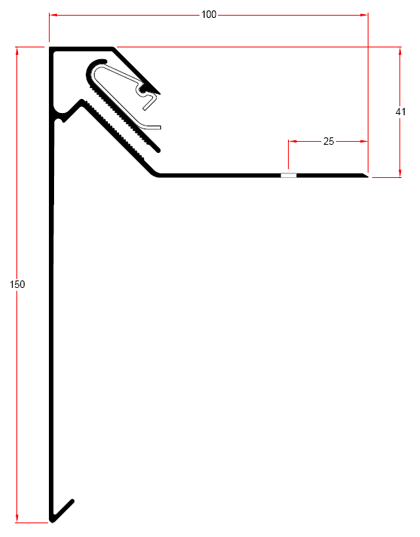

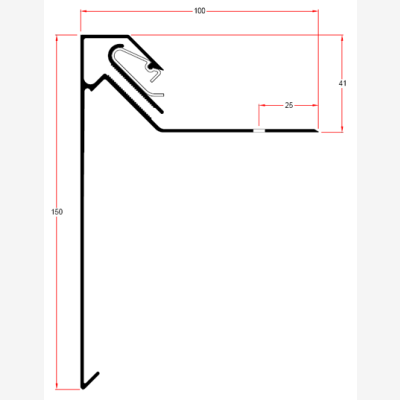

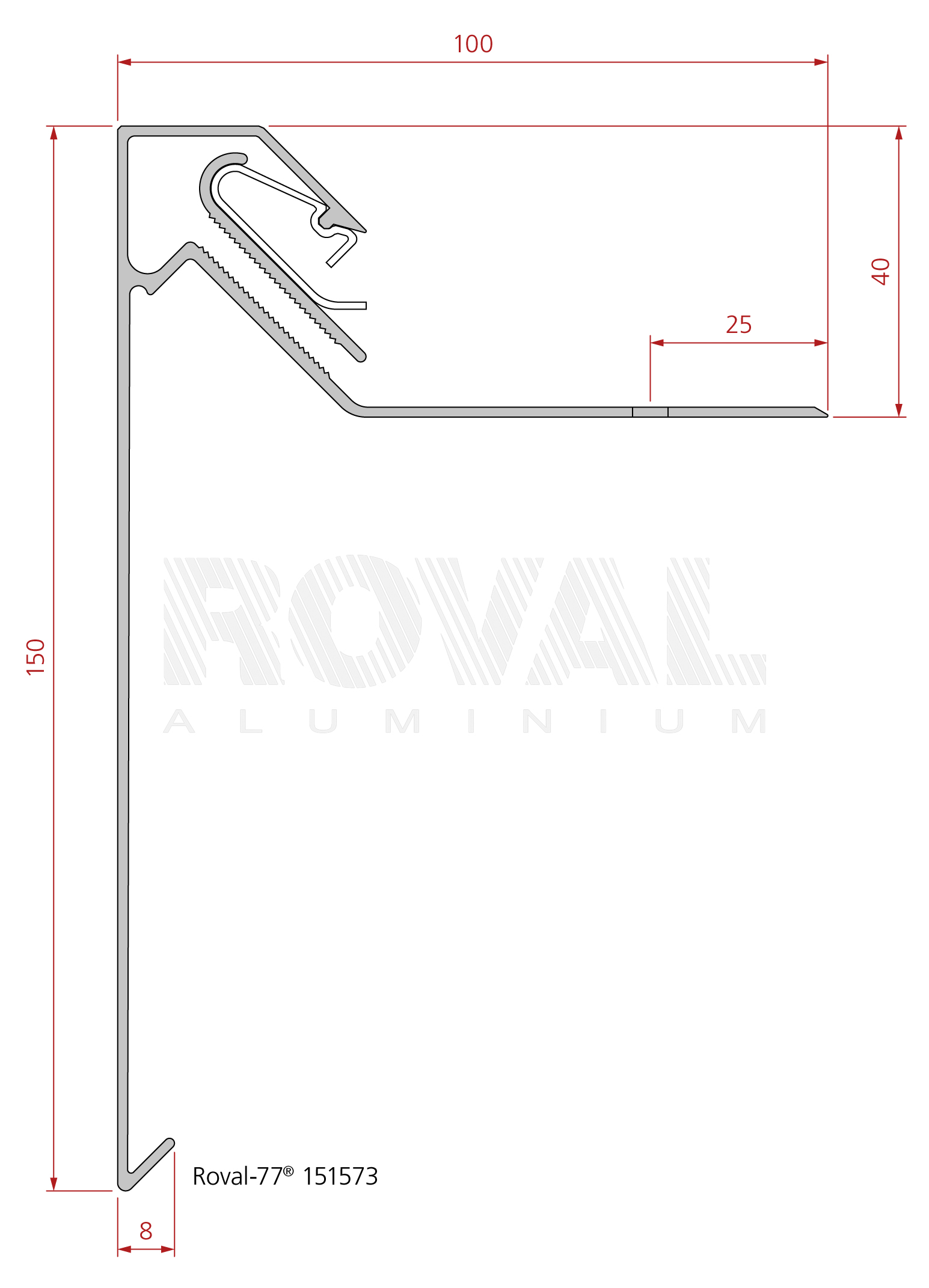

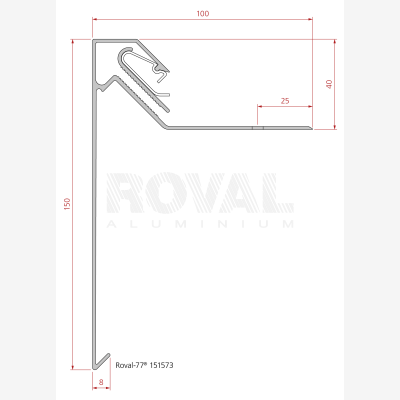

    151573 151573 151573 151573 CAD - 150 mm 100/92 mm

    View our product warranty terms here

    Components:

    External angle

    • Welded corner piece 90º
    • 151565 and 151571 standard size 500 x 500 mm.
      151572 and 151573 standard size 250 x 250 mm.
    • Non-standard sizes possible.

    Internal angle

    • Welded corner piece 90º
    • 151565 and 151571 standard size 500 x 500 mm.
      151572 and 151573 standard size 250 x 250 mm.
    • Non-standard sizes possible.

    Connecting plates / Internal connecting plates

    • These are slid into the profile

    External connecting plates

    • These are slided into the profile
    • No visible expansion
