    Roval-Arc

    Roval-Arc

    Architectural roof edge.
    Combines a traditional rectangular shape with a concave, curved underside.

    Registered design no. 75153-00

    Item overview

    Click on one of the types below for technical drawings and specifications

    CAD Specification Profile height Profile width

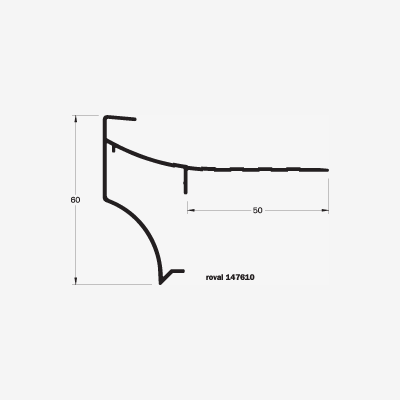

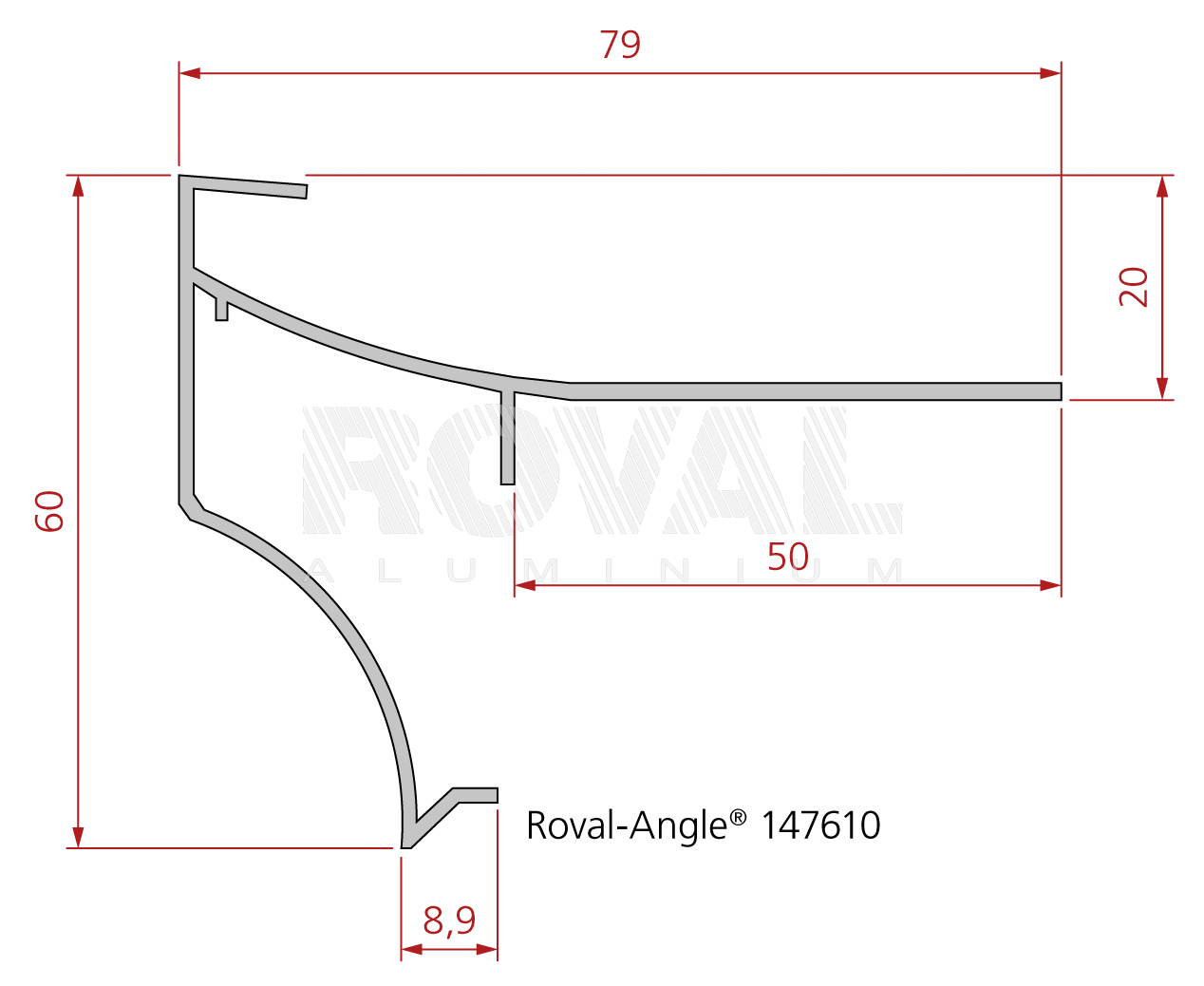

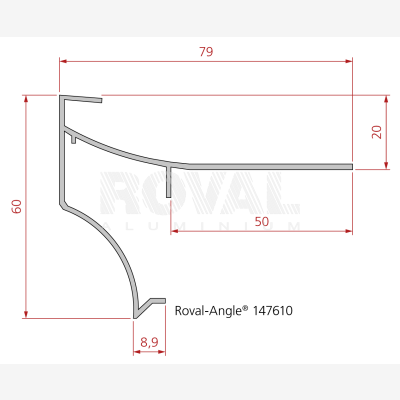

    147610 147610 147610 147610 CAD - 60 mm 80/50 mm

    View our product warranty terms here

    Components:

    External angle

    • Welded corner piece 90º
    • Standard size 500 x 500 mm.
    • Non-standard sizes possible.

    Internal angle

    • Welded corner piece 90º
    • Standard size 500 x 500 mm.
    • Non-standard sizes possible.

    Connecting plate

    • These are slid into the profile


    Do you need help in making the right choice? Ask one of our specialists

    Contact us or request price quotation directly.
