Roval-ClassicPLUS®
Compared to the already high-quality Roval Classic, the Roval Classic Plus has been greatly improved in various respects. For instance, the welded corners are now supplied with 500 x 500 mm legs, which makes correct alignment in the corners even easier.
Item overview
Click on one of the types below for technical drawings and specifications
| CAD | Specification | Profile height | Profile width | ||
|---|---|---|---|---|---|

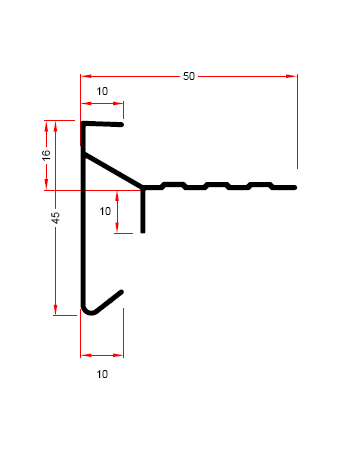

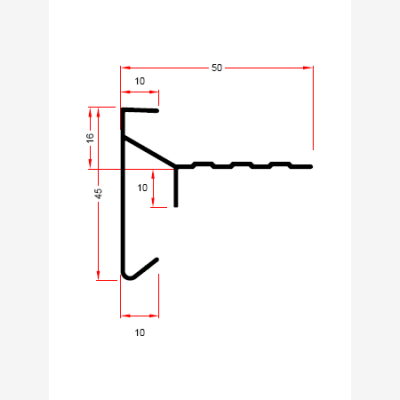

 | 145300 | - | 45 mm | 50 mm | |

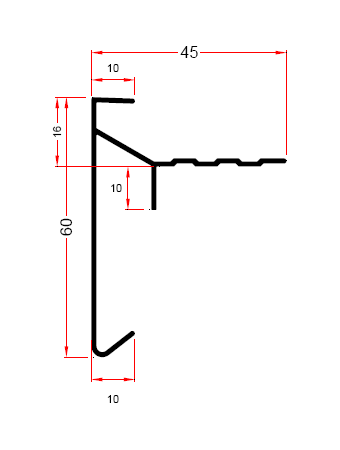

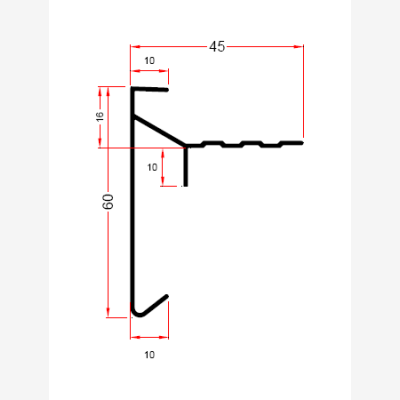

 | 145340 | - | 60 mm | 45 mm | |

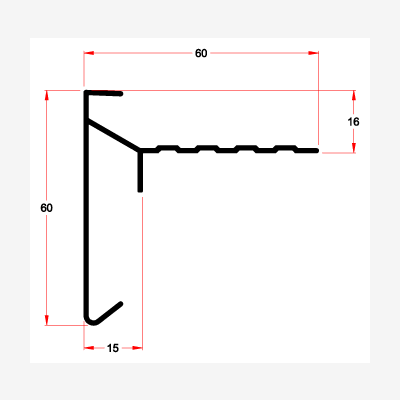

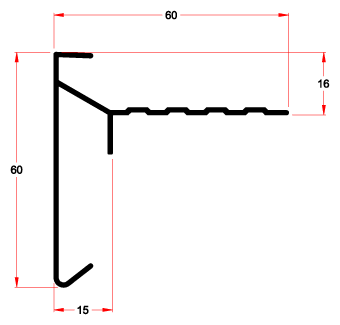

 | 145350 | - | 60 mm | 60 mm | |

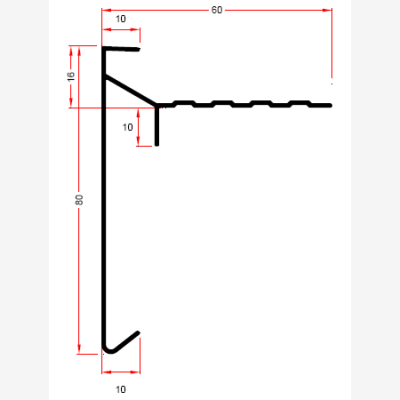

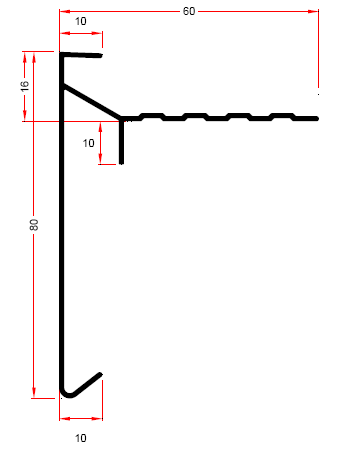

 | 145375 | - | 80 mm | 60 mm | |

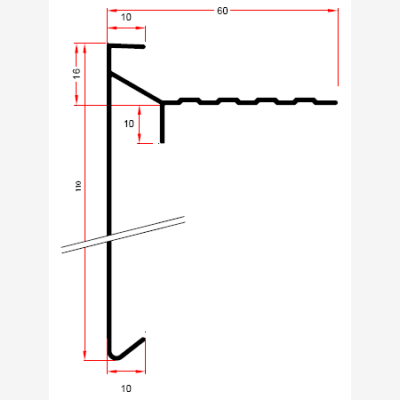

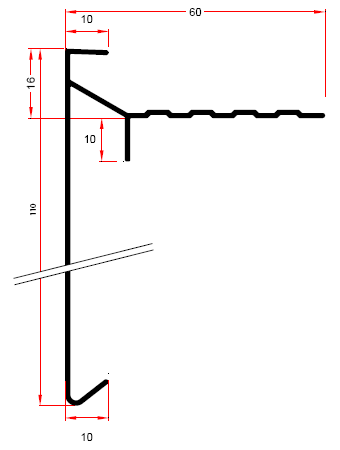

 | 145390 | - | 110 mm | 60 mm | |
View our product warranty terms here
In addition, the Roval Classic Plus offers extra space for easy processing of the roof covering, and the improved profiling of the support surface makes it even easier to work with. The risk of water penetration is reduced to a minimum thanks to the ascending support. The Roval Classic Plus also stands out in terms of aesthetics, as the roof edge is fastened 15 mm from the façade. This also significantly reduces the likelihood of a dirty façade. Finally, the accompanying connecting plate ensures excellent coupling of the various lengths and angles.
In short, the Roval Classic Plus is a real improvement for the roof. A quality boost that will have its effect on the qualitative appearance of your projects.
Components:
External angle
- Welded corner piece 90º
- Standard size 500 x 500 mm.
- Non-standard sizes possible.
Internal angle
- Welded corner piece 90º
- Standard size 500 x 500 mm.
- Non-standard sizes possible.
Connecting plates / Internal connecting plate
- These are slid into the profile
