Aluminium roof edge with rounded frontal view. The Roval range of roof edges comprises aluminium standard roof edges and architectural roof edges. The latter group includes various aesthetically pleasing and particularly well-designed aluminium roof edges. One of these is the Roval Kraal®.

Item overview

Click on one of the types below for technical drawings and specifications

CAD Specification Profile height Profile width

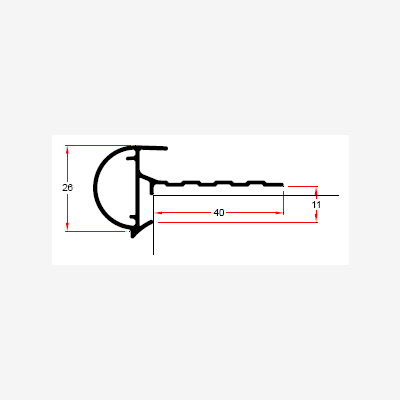

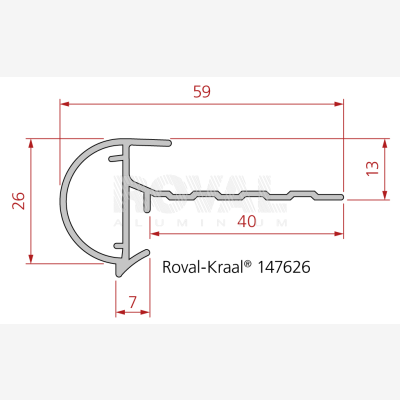

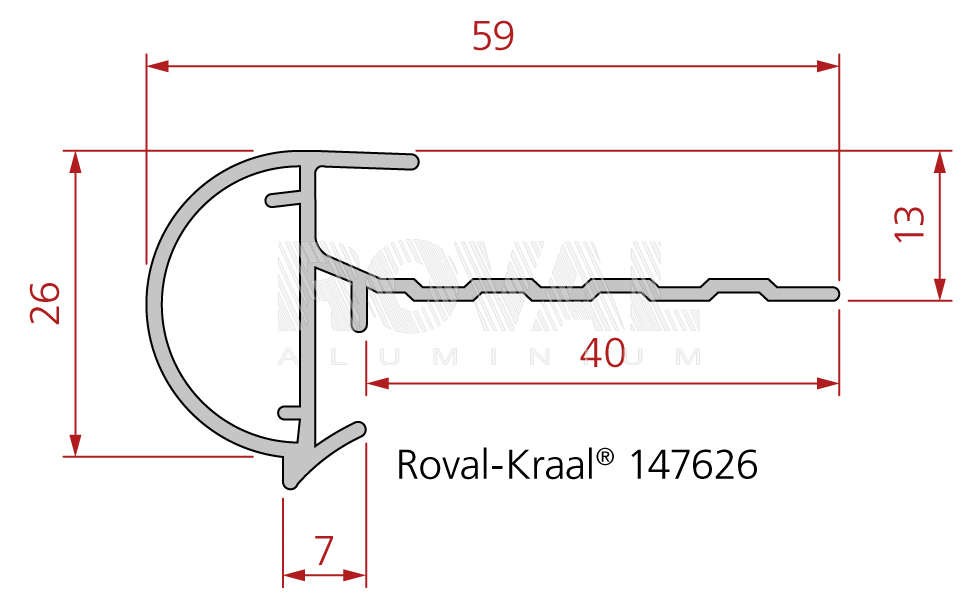

147626 147626 147626 CAD - 26 mm 40 mm

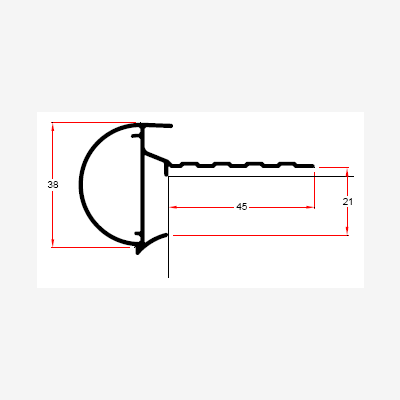

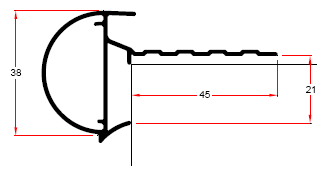

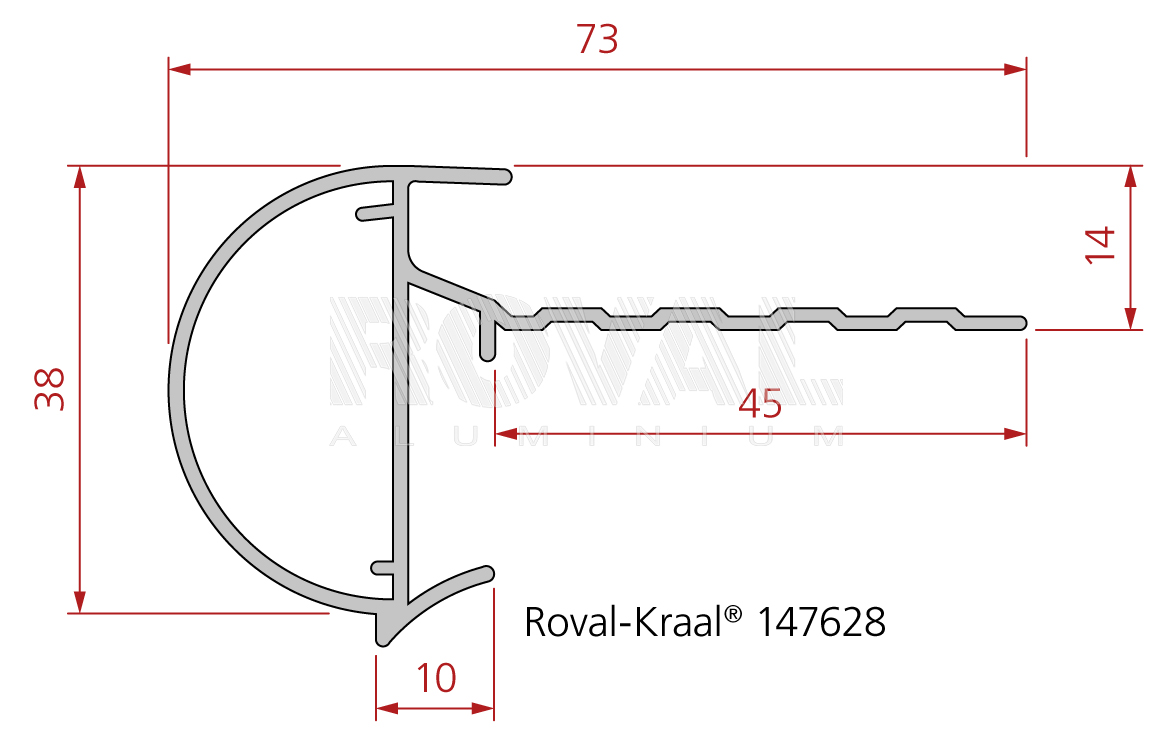

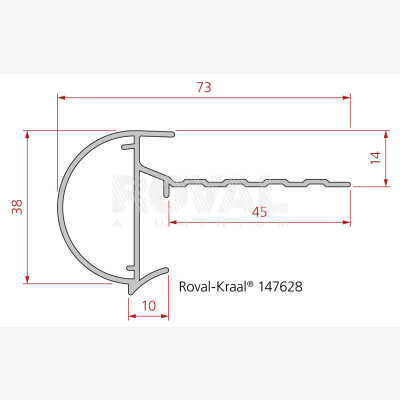

147628 147628 147628 CAD - 38 mm 45 mm

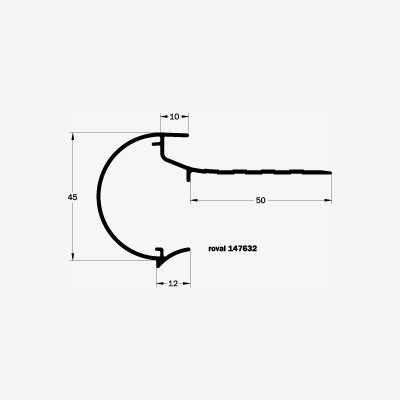

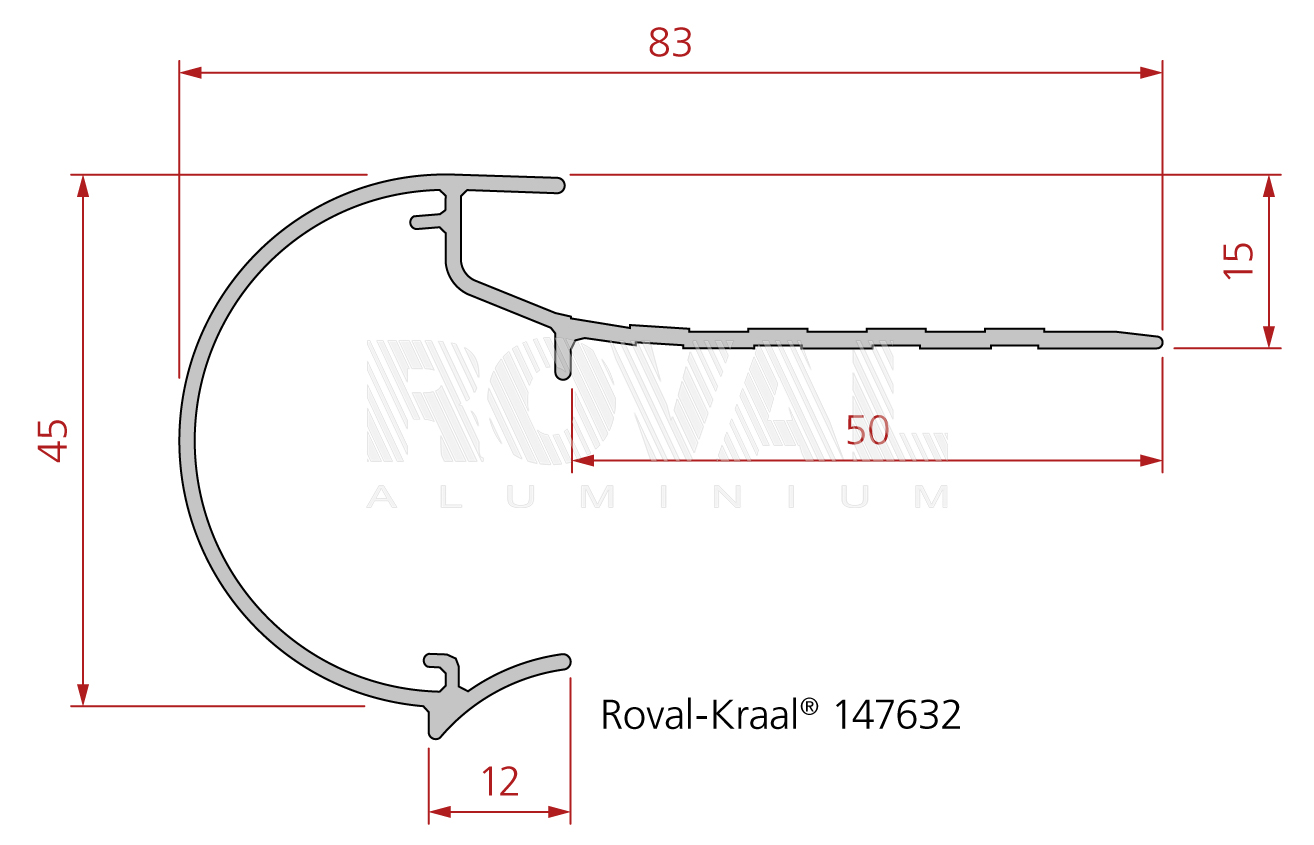

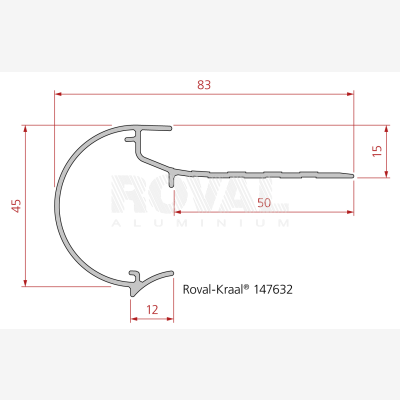

147632 147632 147632 CAD - 45 mm 50 mm

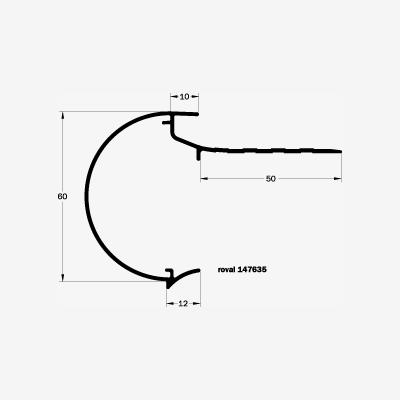

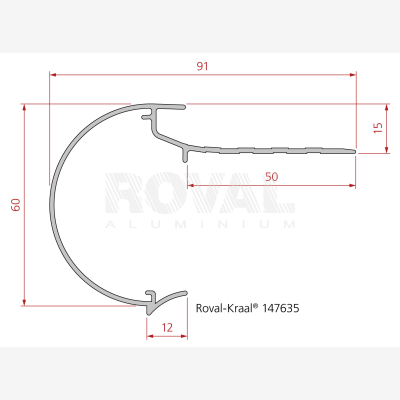

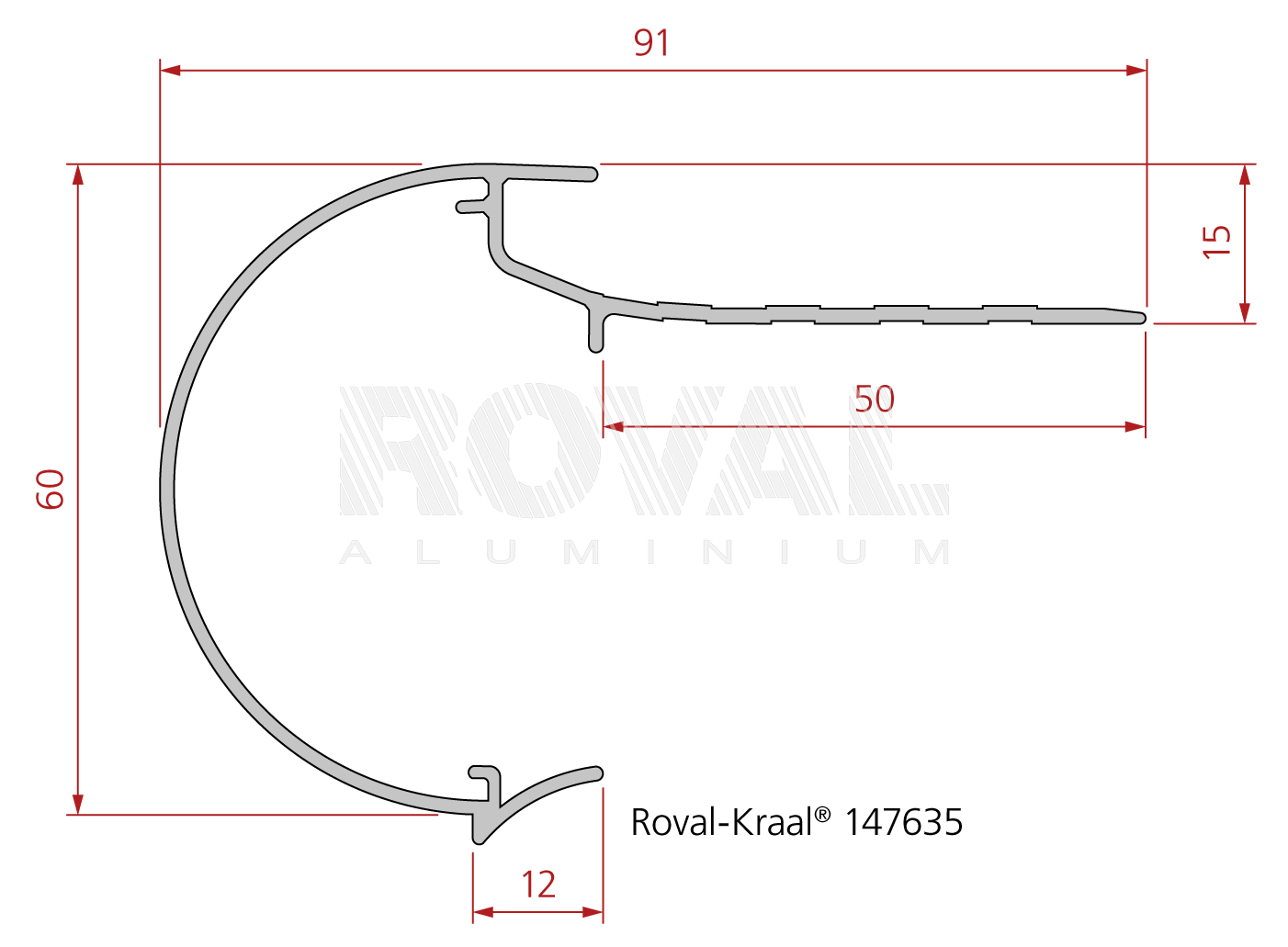

147635 147635 147635 CAD - 60 mm 50 mm

View our product warranty terms here

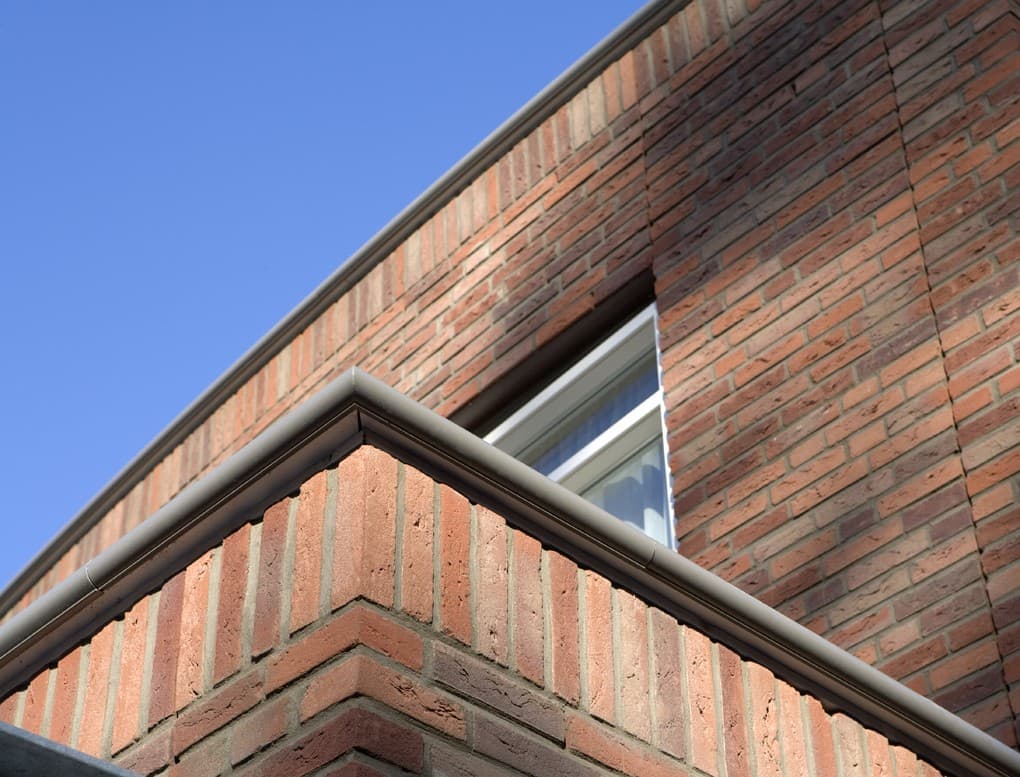

The nostalgic appearance with its rounded frontal view fits in perfectly with renovations and new houses with a 1930s look. Roval Aluminium supplies the Roval Kraal® in sizes 26x40, 38x45, 45x50 and 60x50 mm. The round frontal view refers to the traditional bead moulding of yesteryears. Architectural roof edge. A rounded roof edge reminiscent of traditional bead moulding.

The aluminium roof edges are used in residential and utility projects on both synthetic and bitumen roof coverings. The roof edges can also be fitted with an anti-climb profile.

Registered design no. 74616-00


External angle
  Welded corner piece 90º
Standard size 500 x 500 mm.
Non-standard sizes possible.
Internal angle
  Welded corner piece 90º
Standard size 500 x 500 mm.
Non-standard sizes possible.
Connecting plate
