Roval-Standard

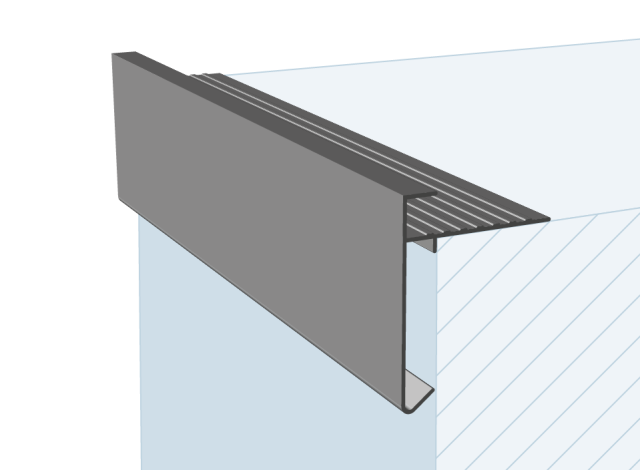

Aluminum roof edge profile (roof trim) suitable for residential and commercial construction. Available in raw, enamelled and anodized versions. In lengths of 2500 mm. A number of RAL colors are available from stock in the dimensions 60x64 mm, 80x64 mm and 45x45 mm. In addition, a clear anodized version is available as standard in stock for the 60x45mm.

Item overview

Click on one of the types below for technical drawings and specifications

	Specification	Profile height	Profile width

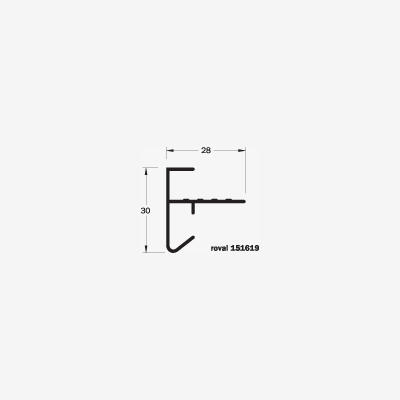

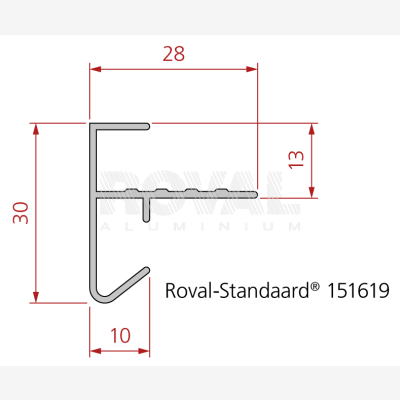

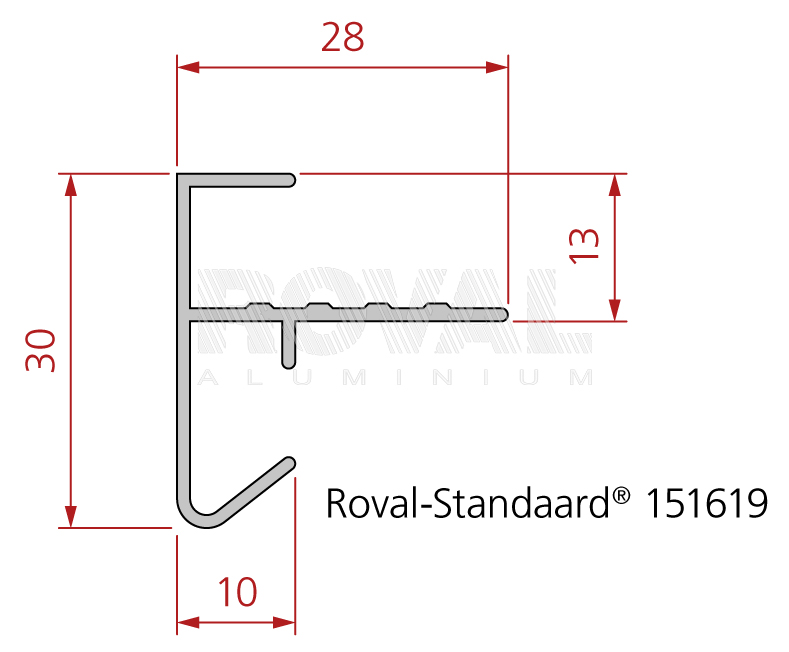

151619	-	30 mm	28/18 mm

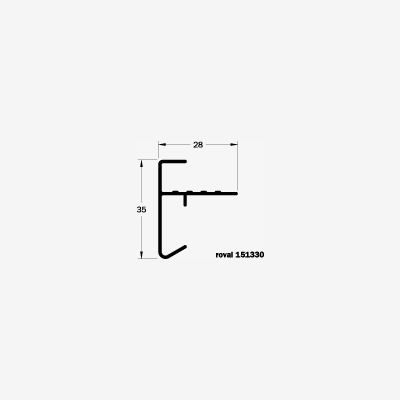

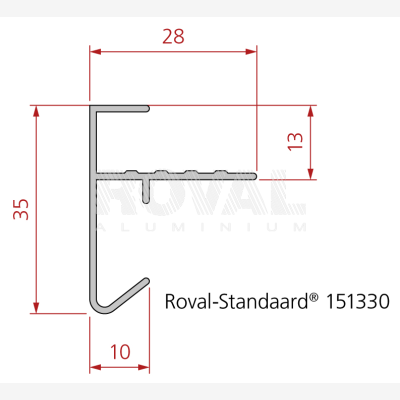

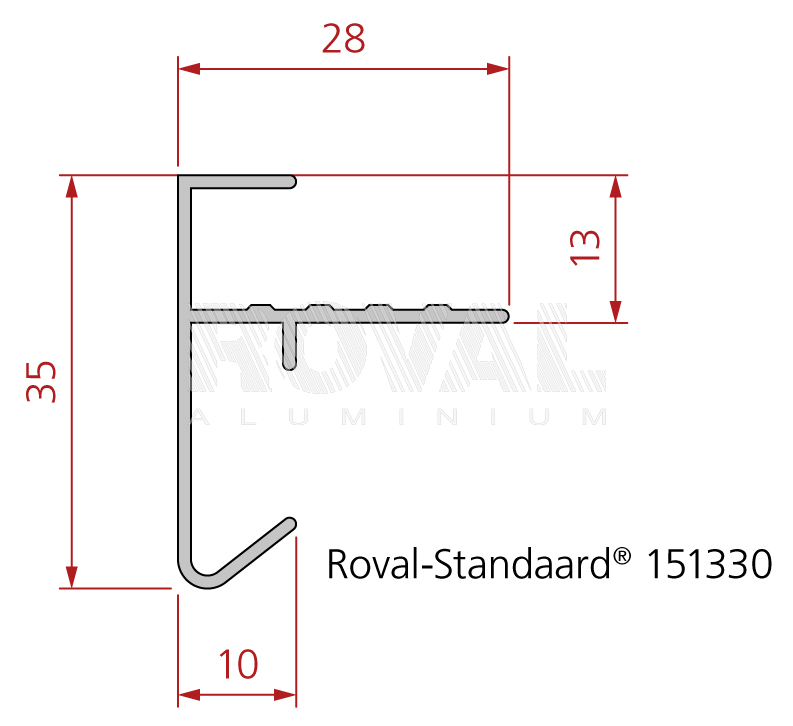

151330	-	35 mm	28/18 mm

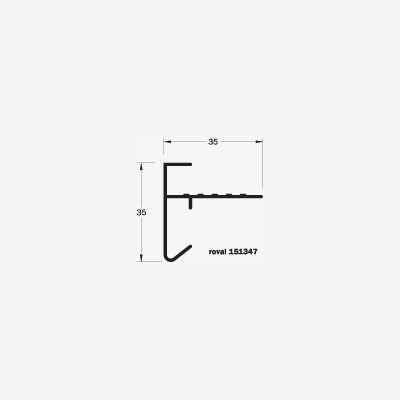

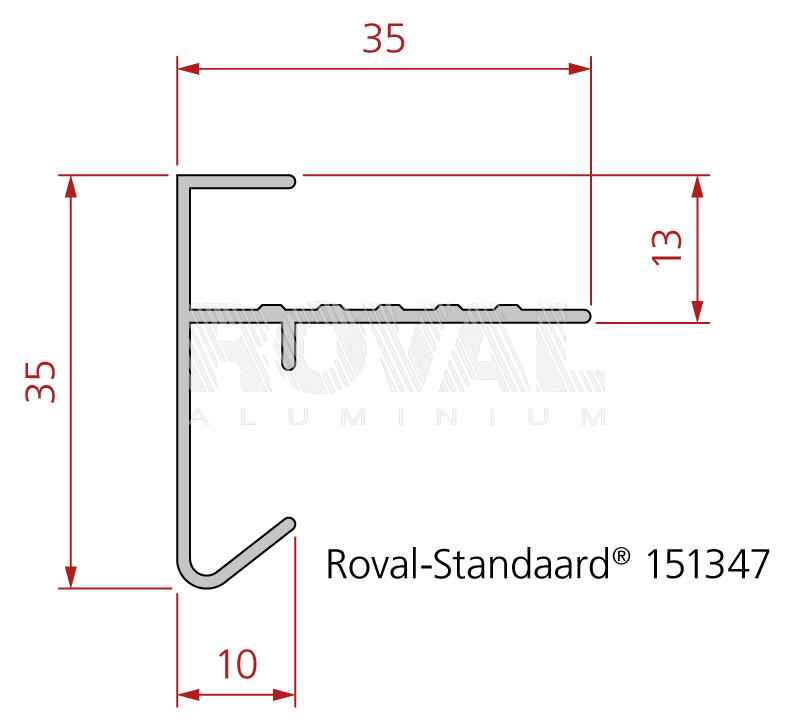

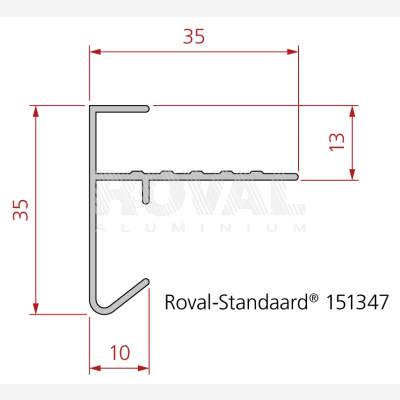

151347	-	35 mm	35/25 mm

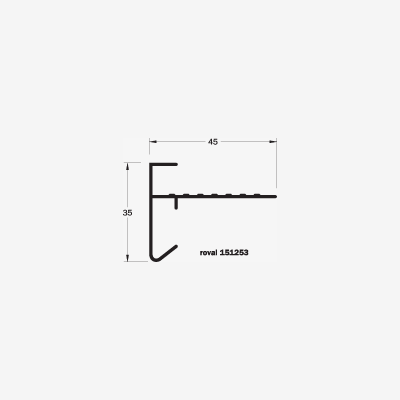

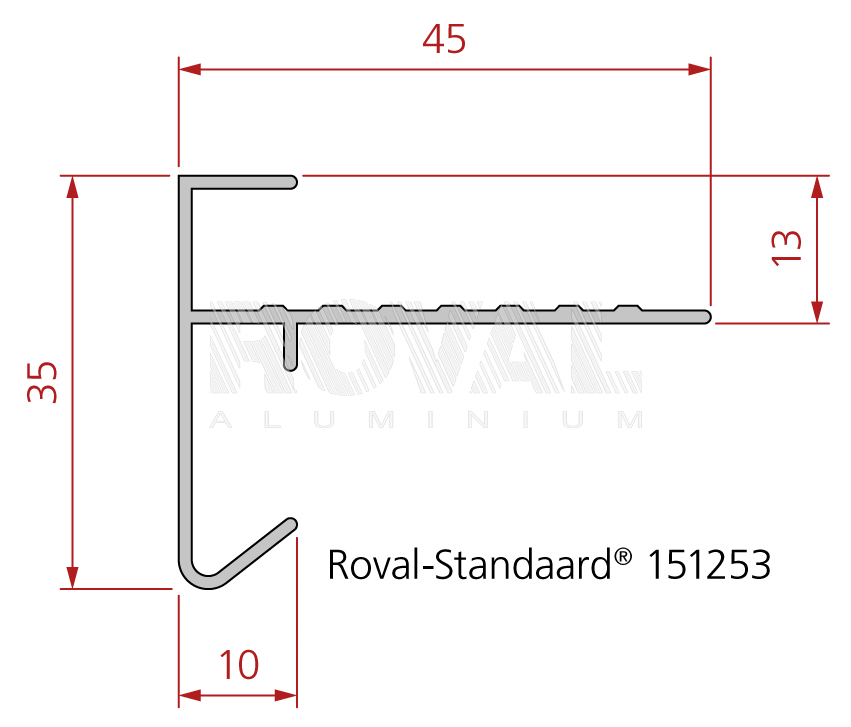

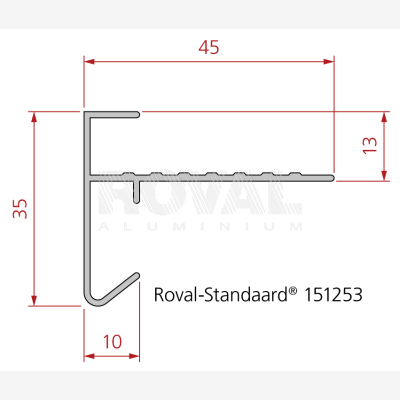

151253	-	35 mm	45/35 mm

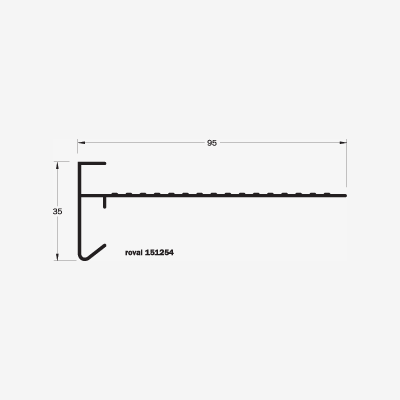

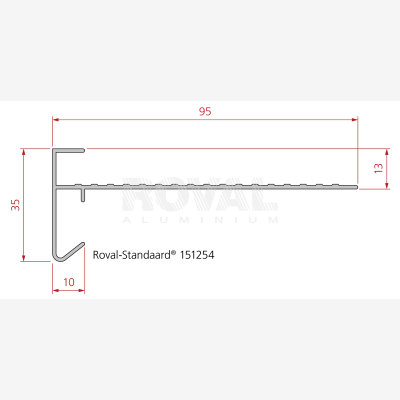

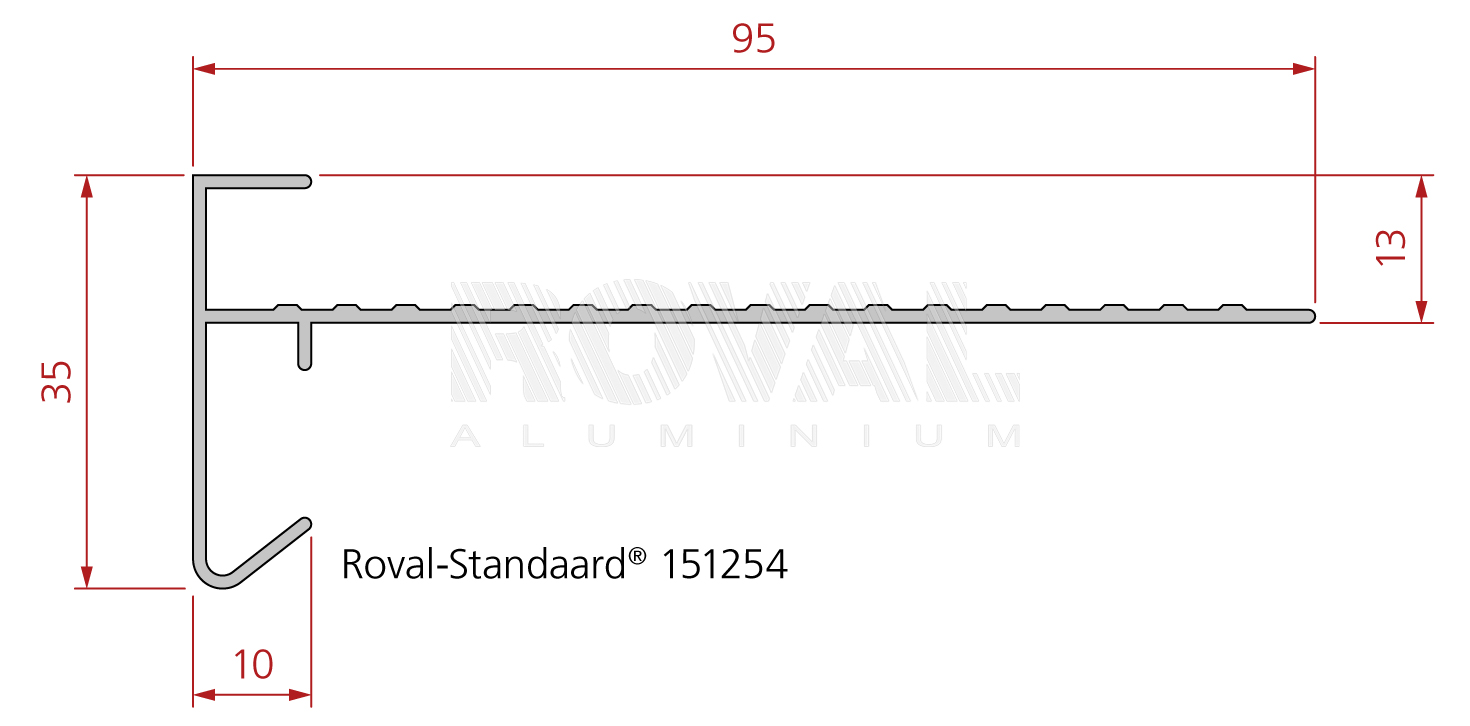

151254	-	35 mm	95/85 mm

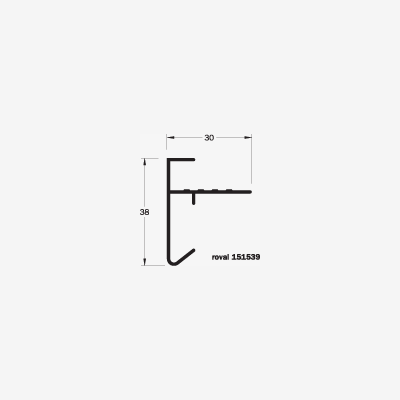

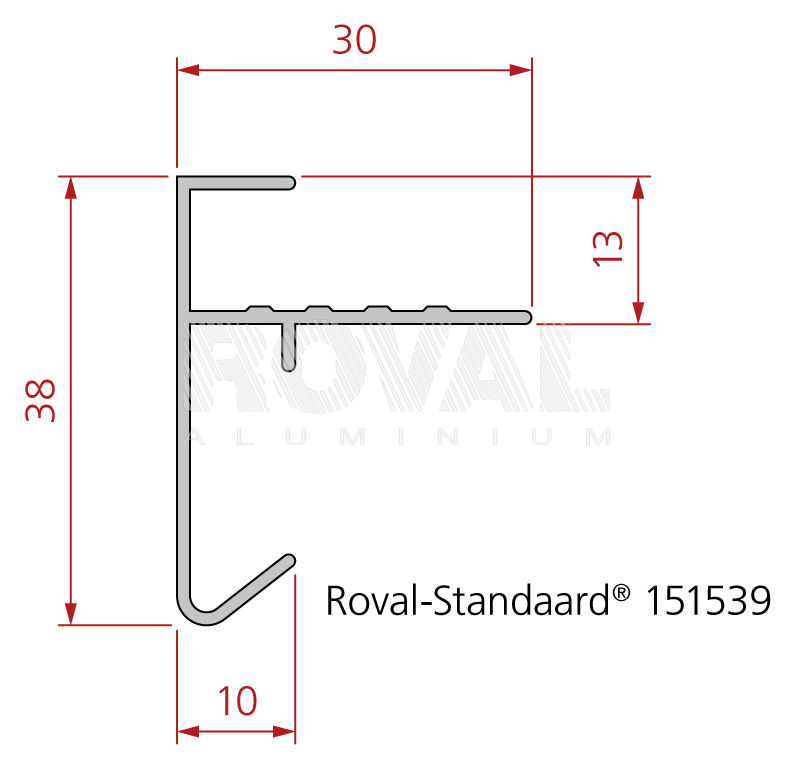

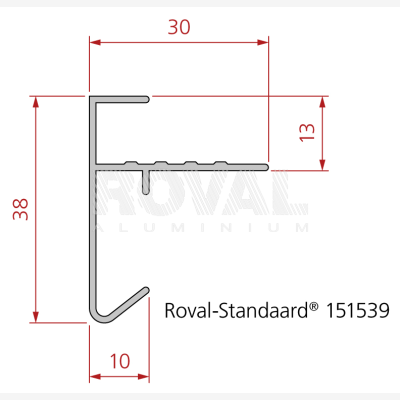

151539	-	38 mm	30/20 mm

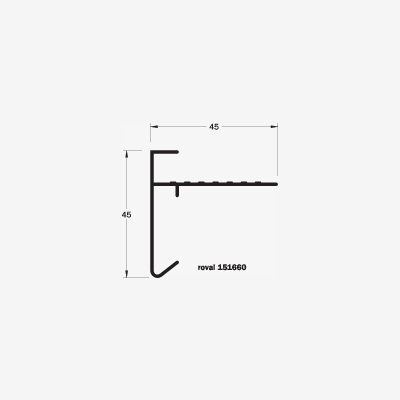

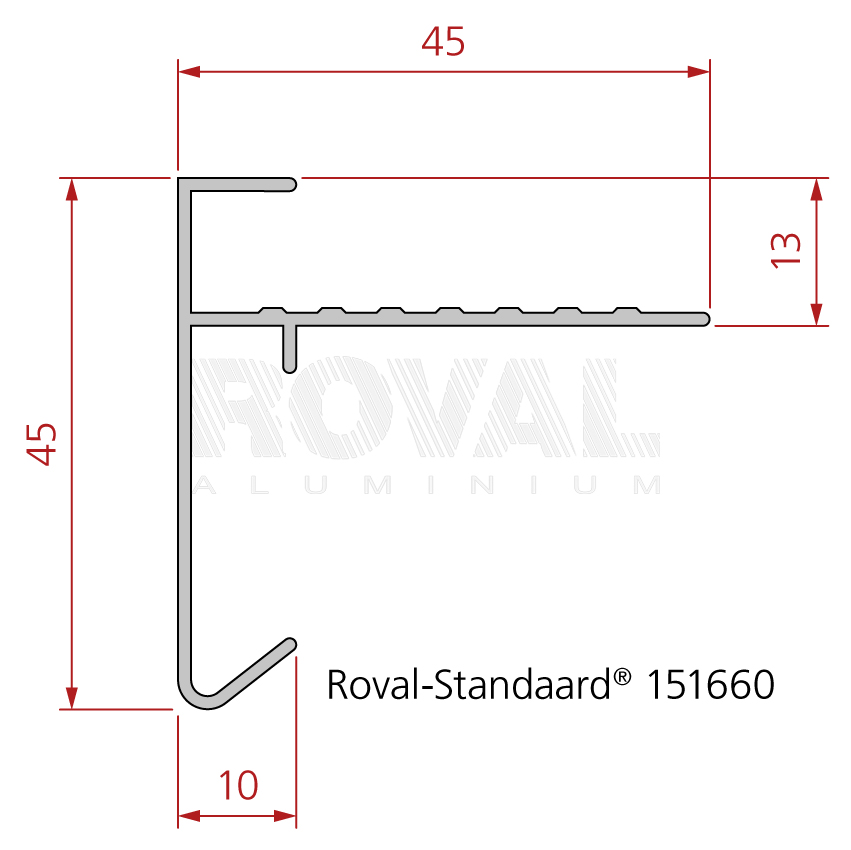

151660	-	45 mm	45/35 mm

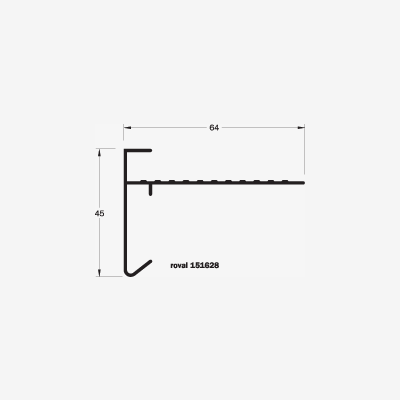

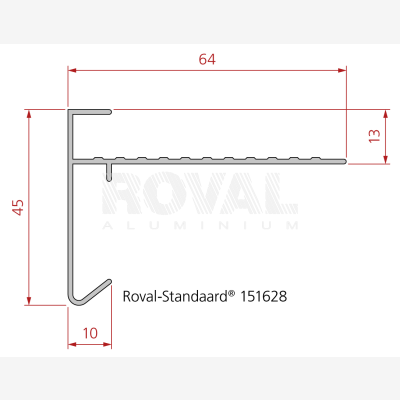

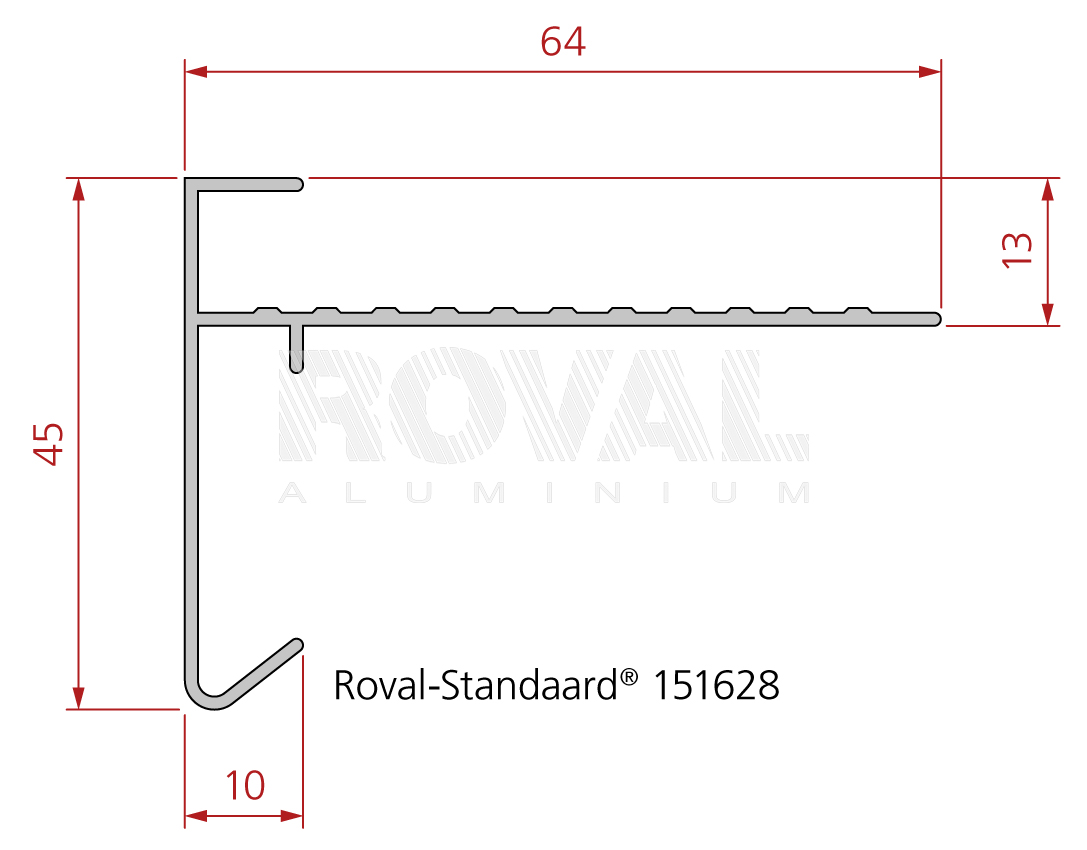

151628	-	45 mm	64/54 mm

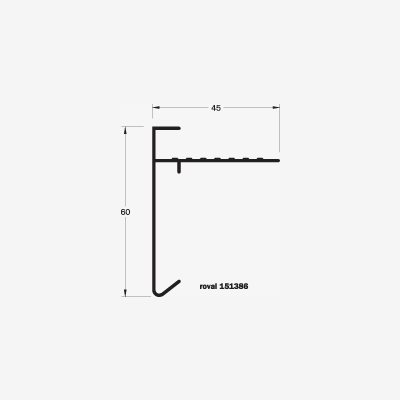

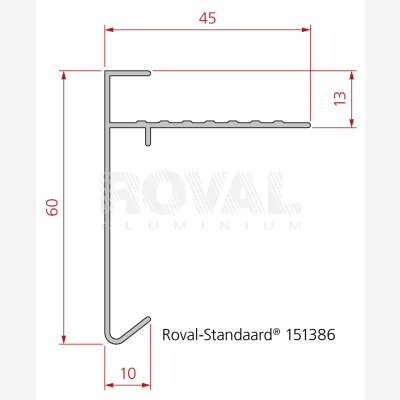

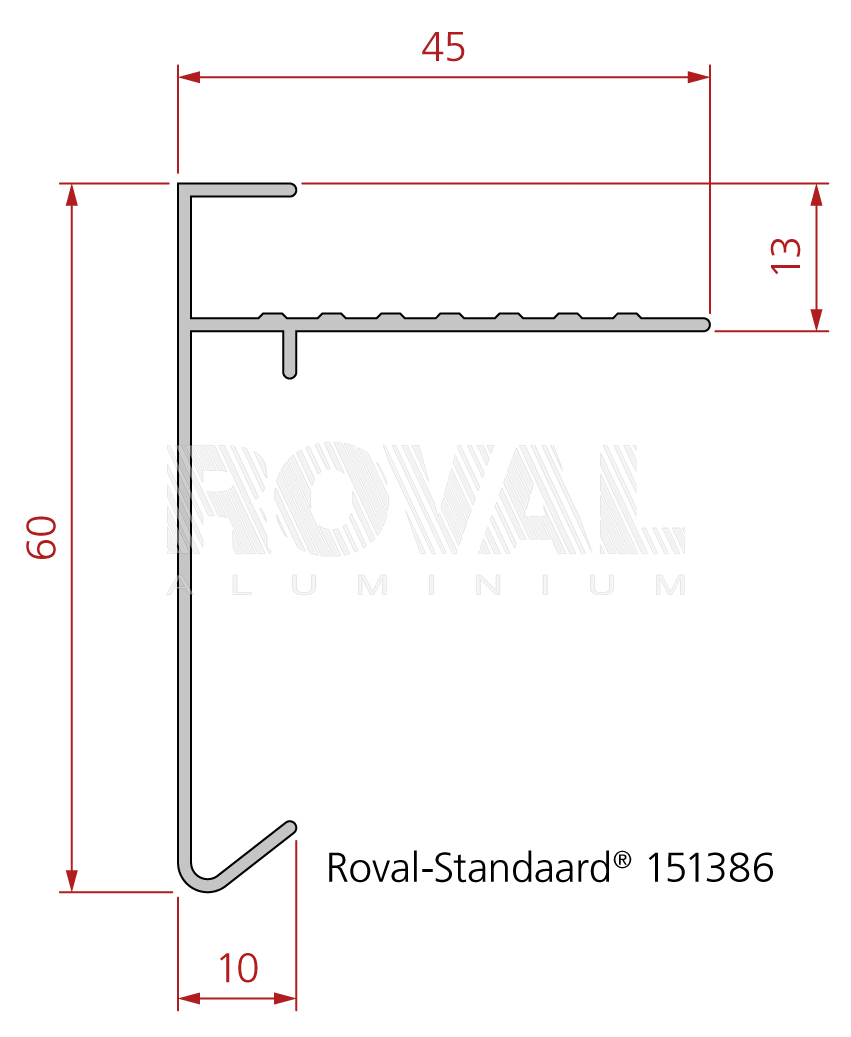

151386	-	60 mm	45/35 mm

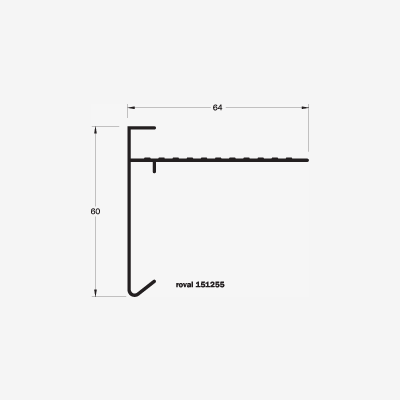

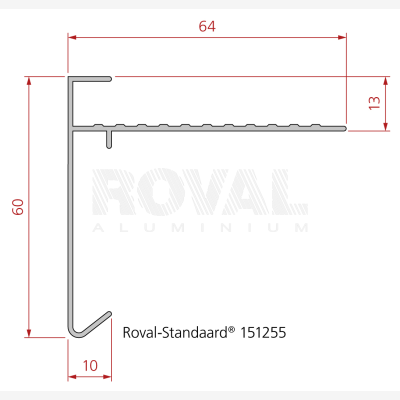

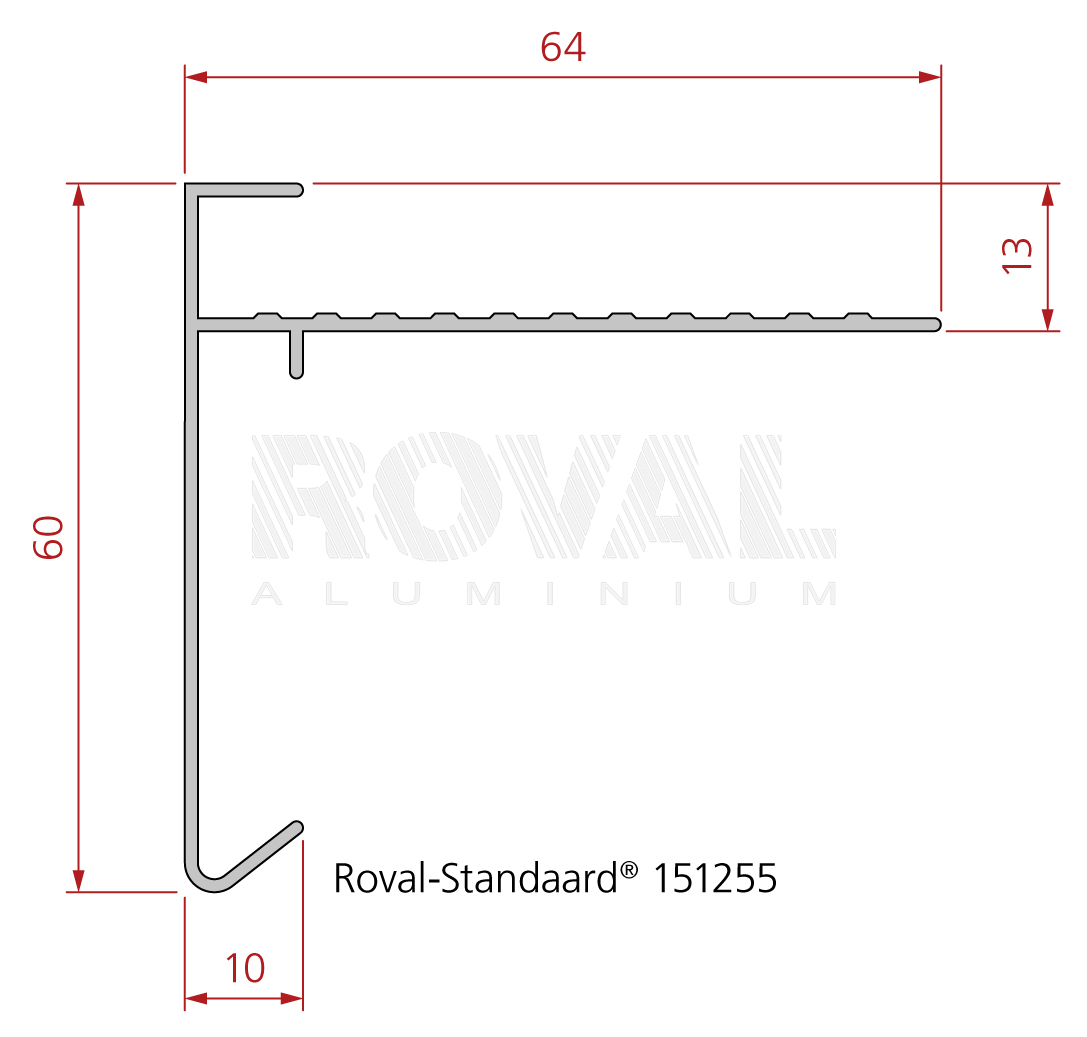

151255	-	60 mm	64/54 mm

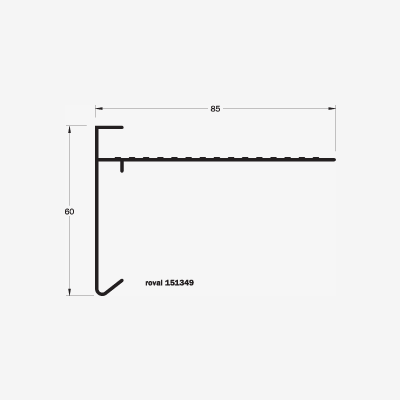

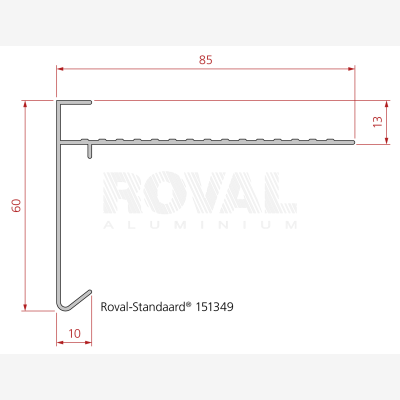

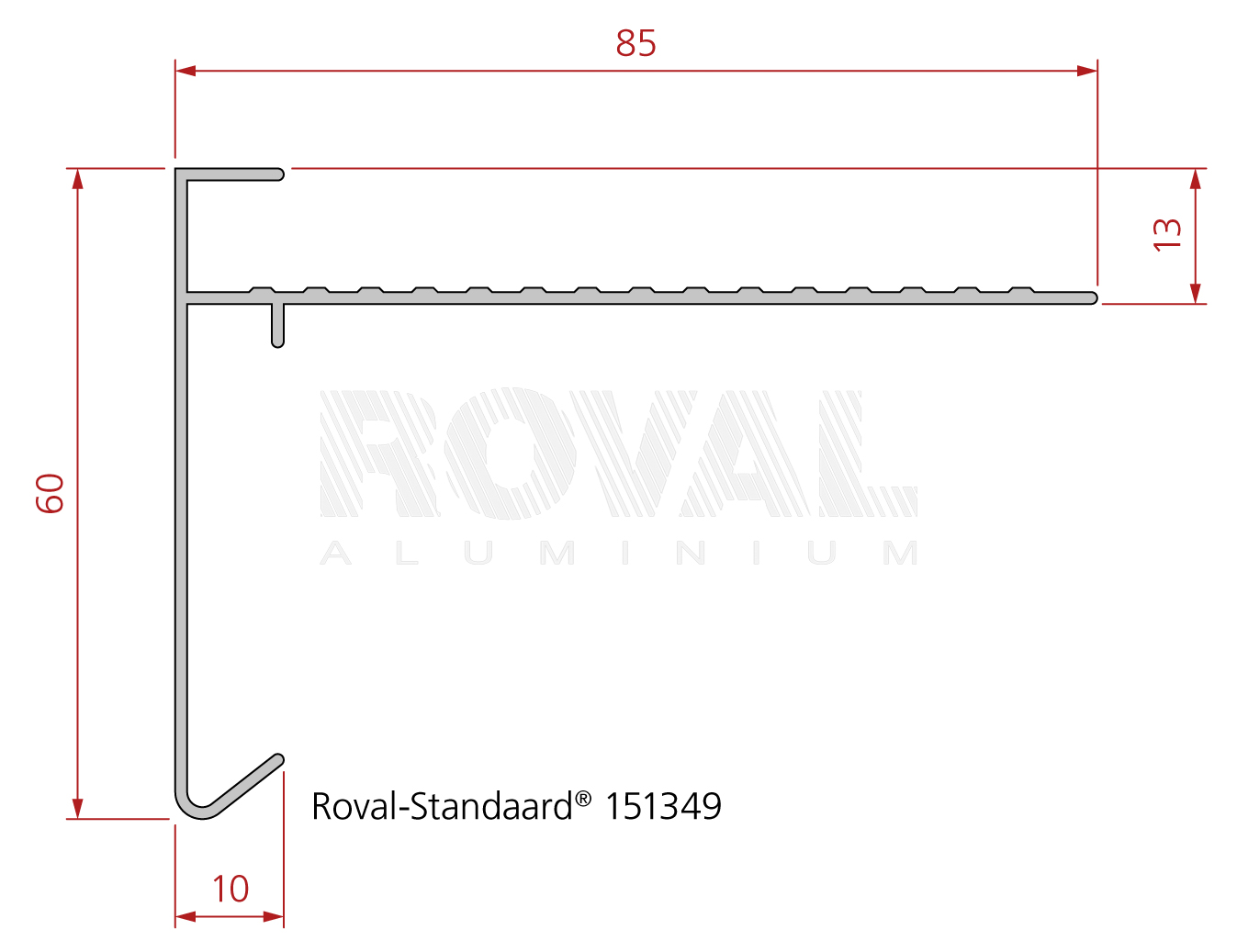

151349	-	60 mm	85/75 mm

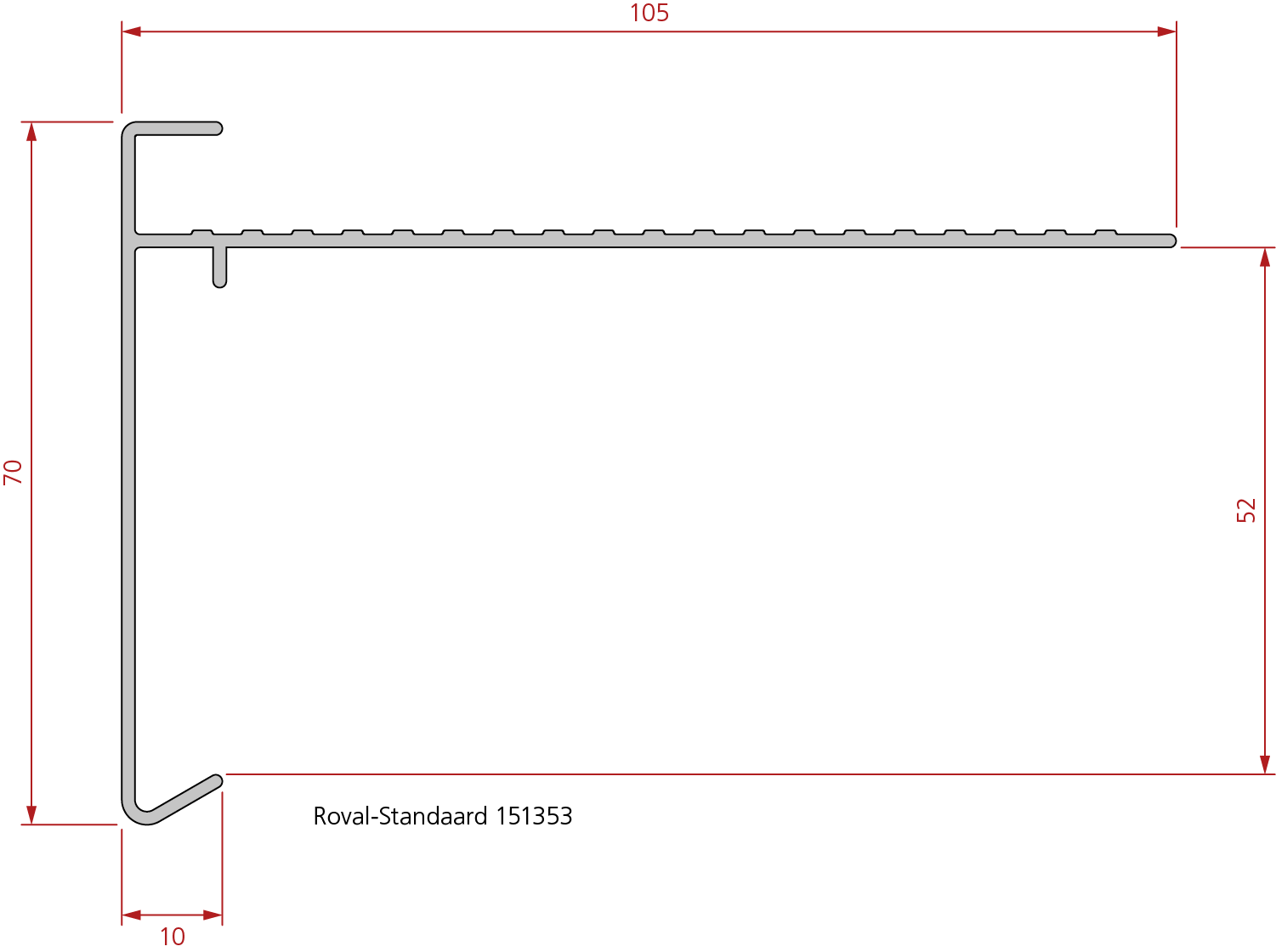

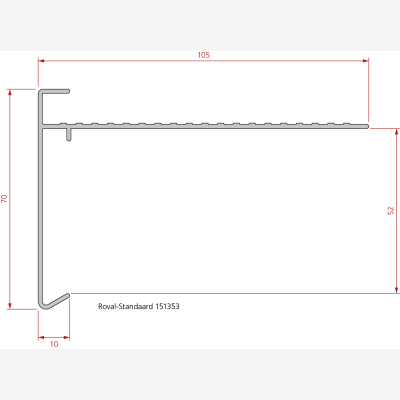

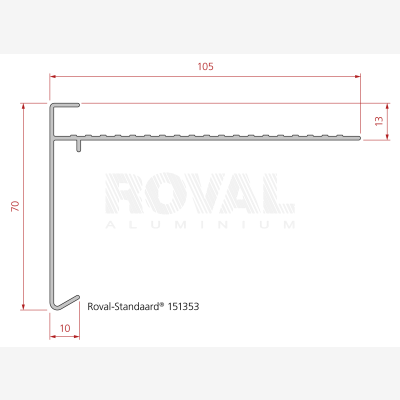

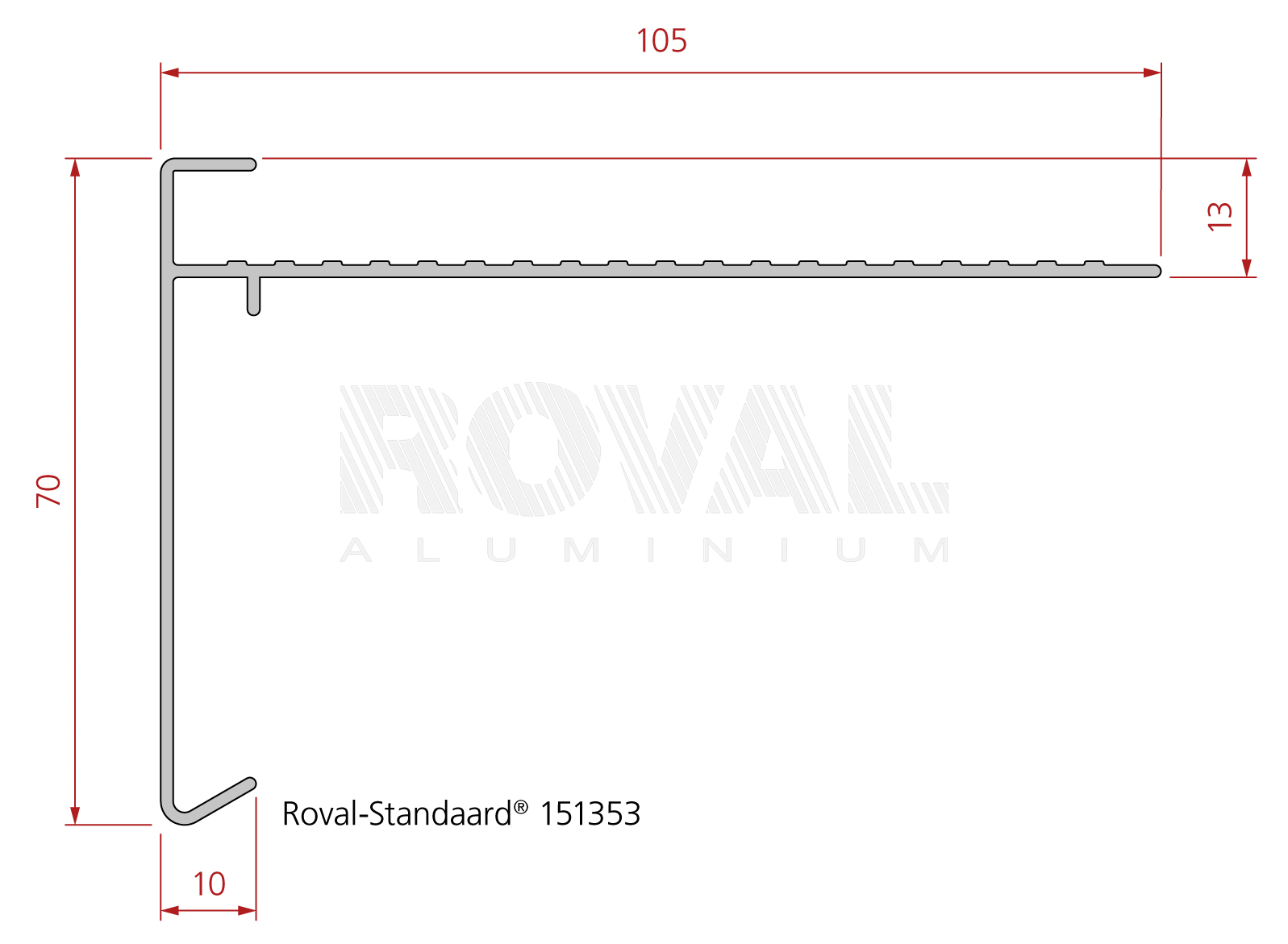

151353	-	70 mm	105/95 mm

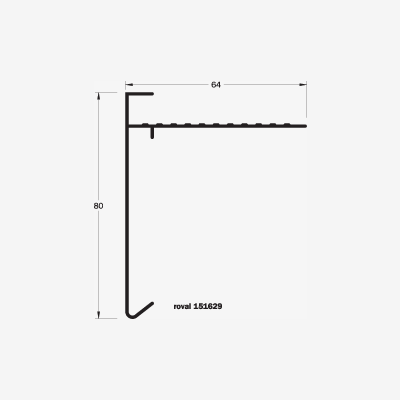

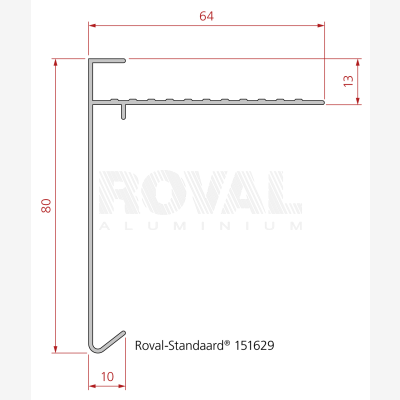

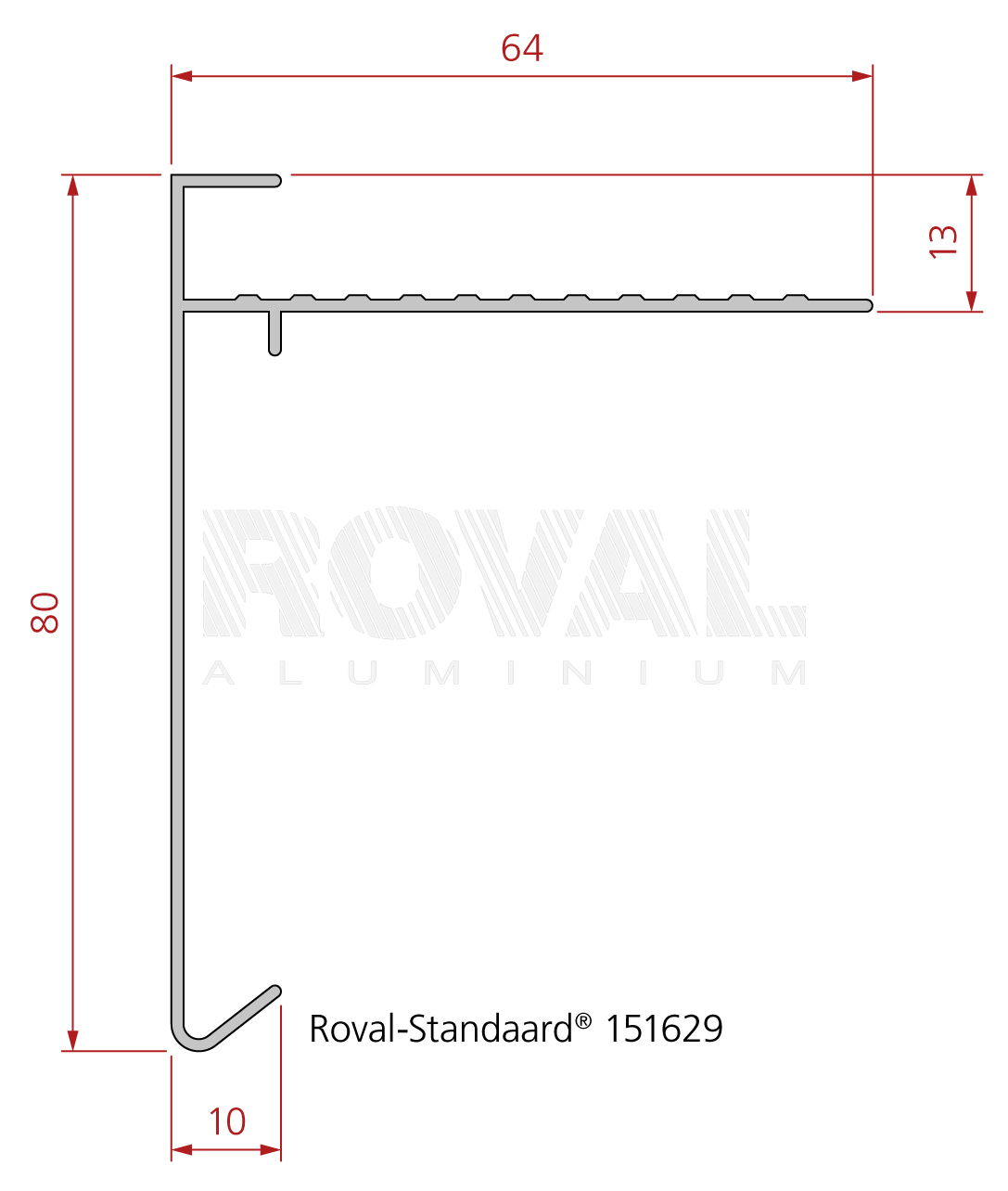

151629	-	80 mm	64/54 mm

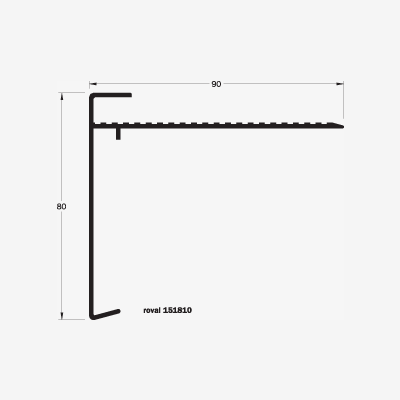

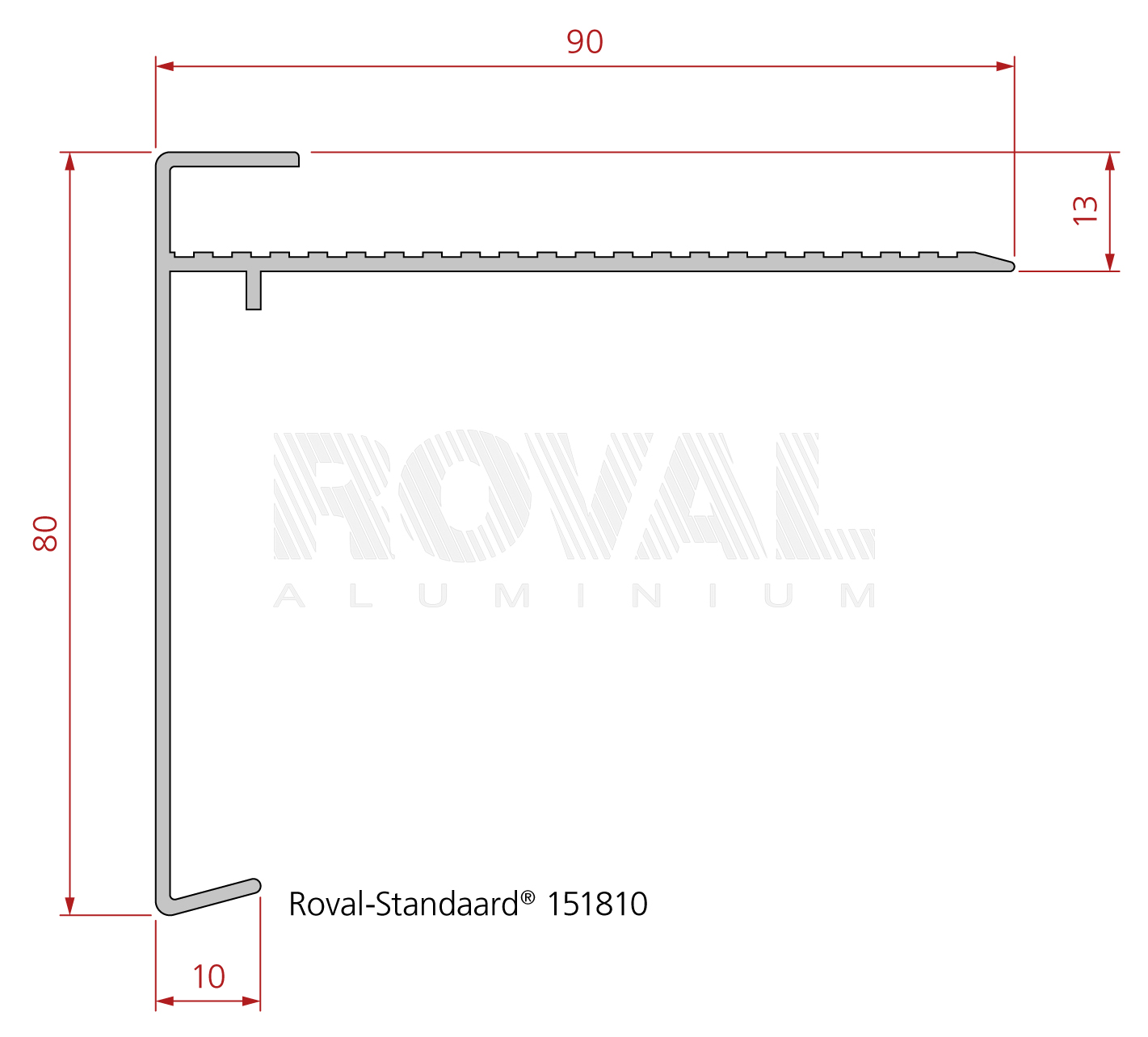

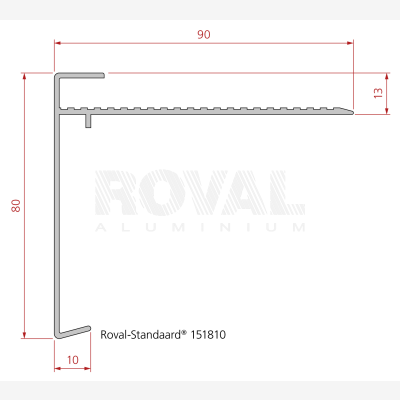

151810	-	80 mm	90/79 mm

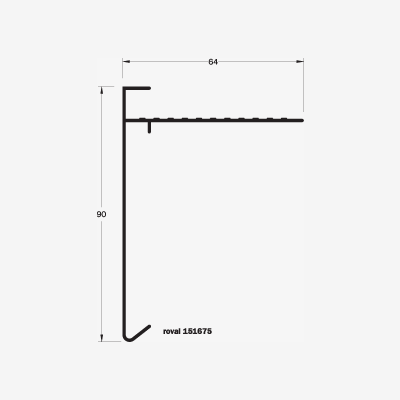

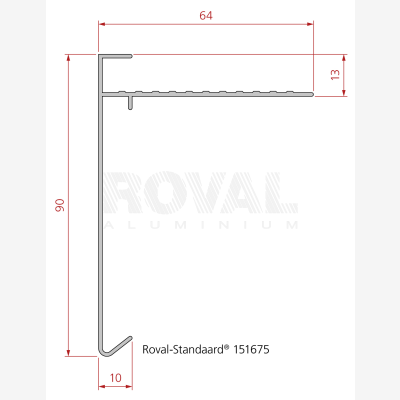

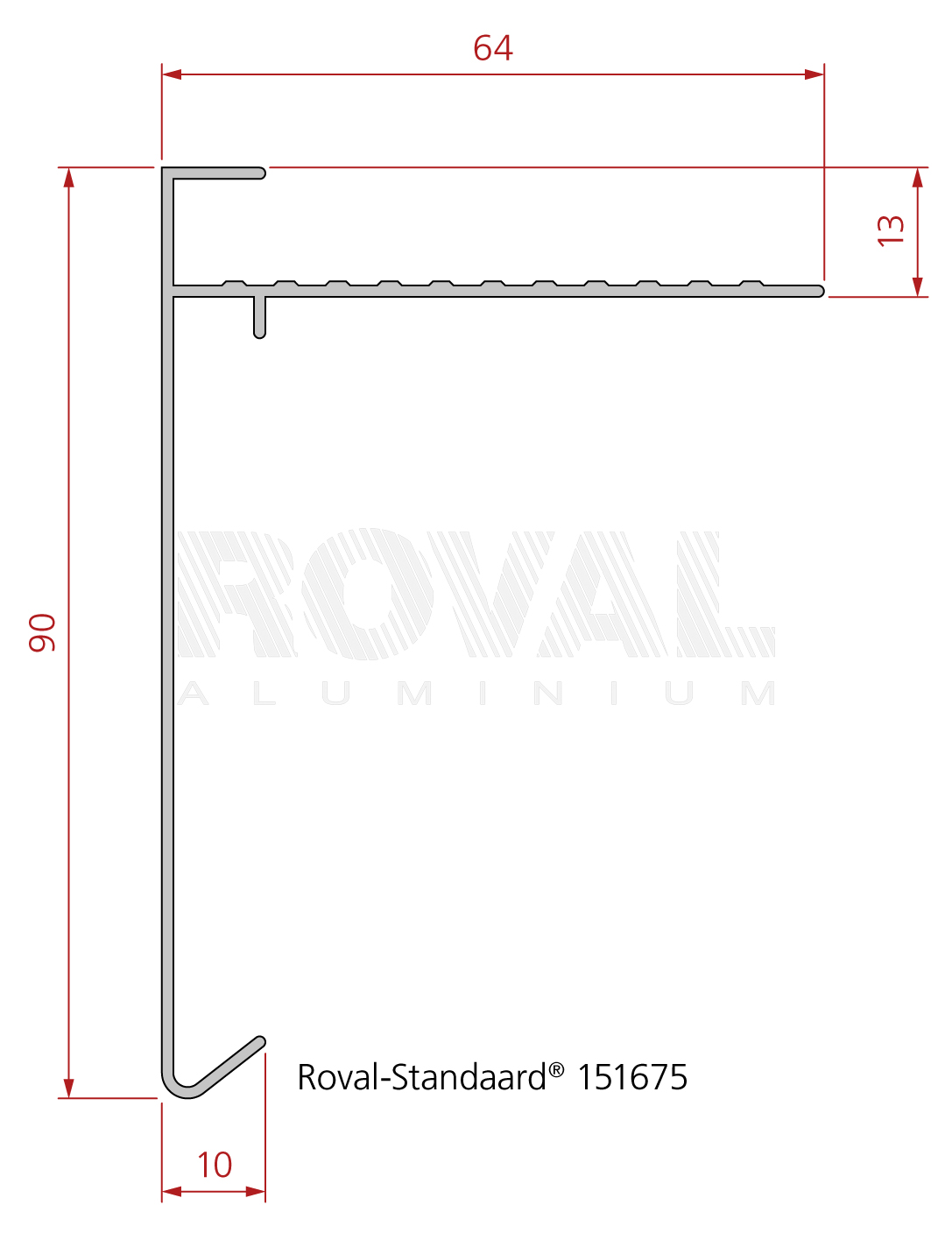

151675	-	90 mm	64/54 mm

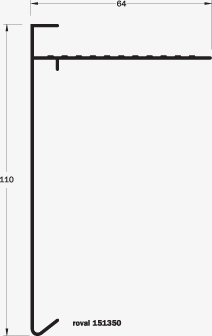

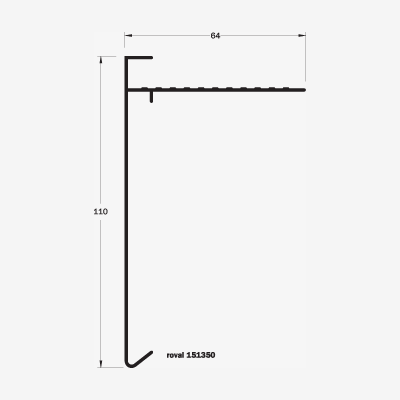

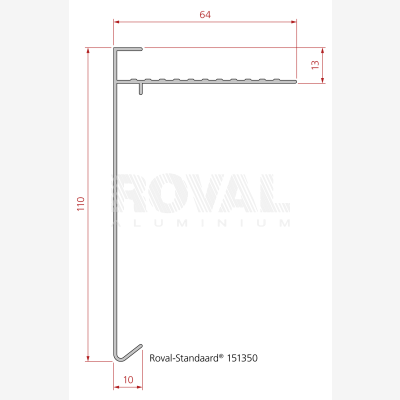

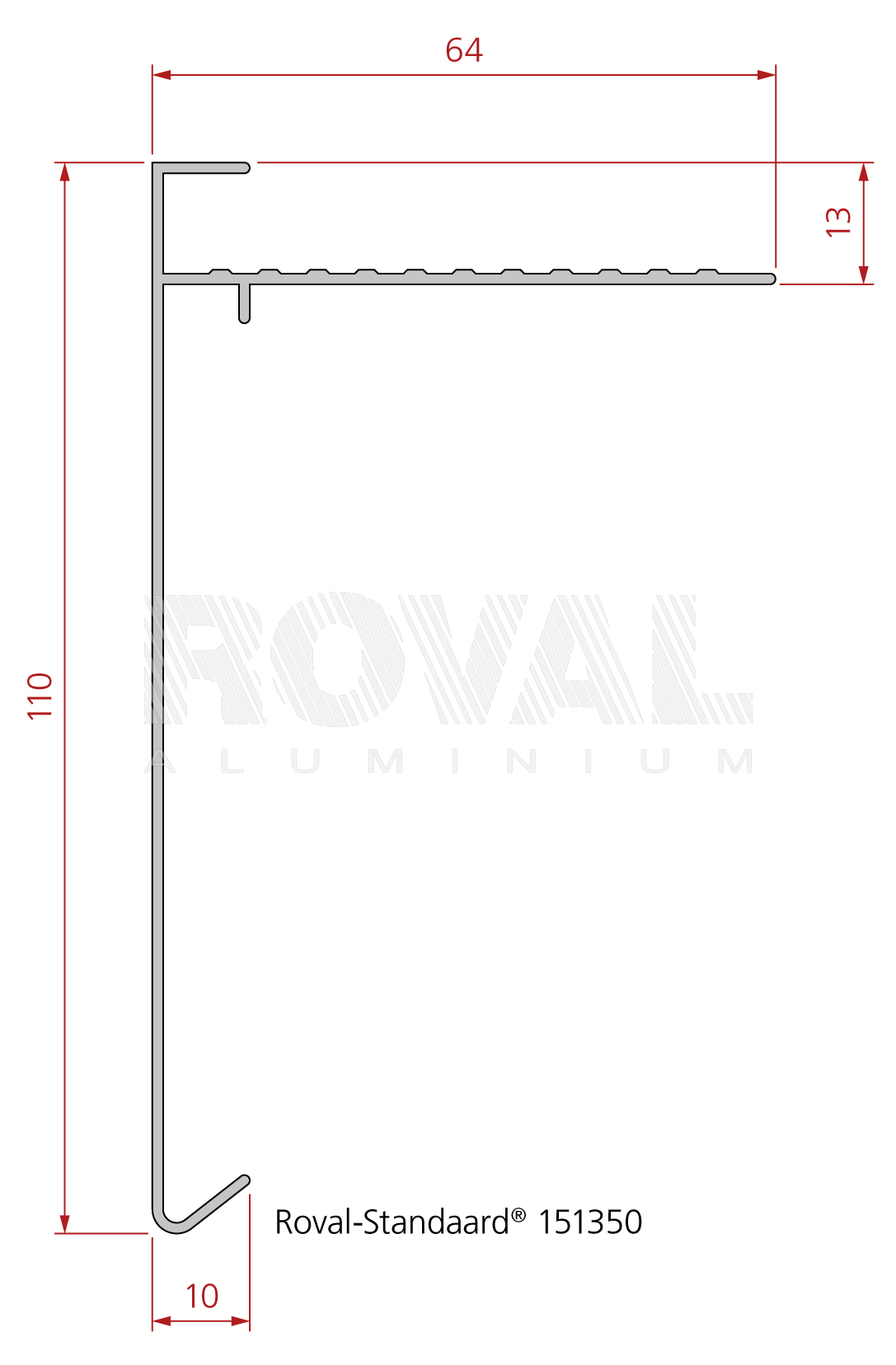

151350	-	110 mm	64/54 mm

View our product warranty terms here

Components:

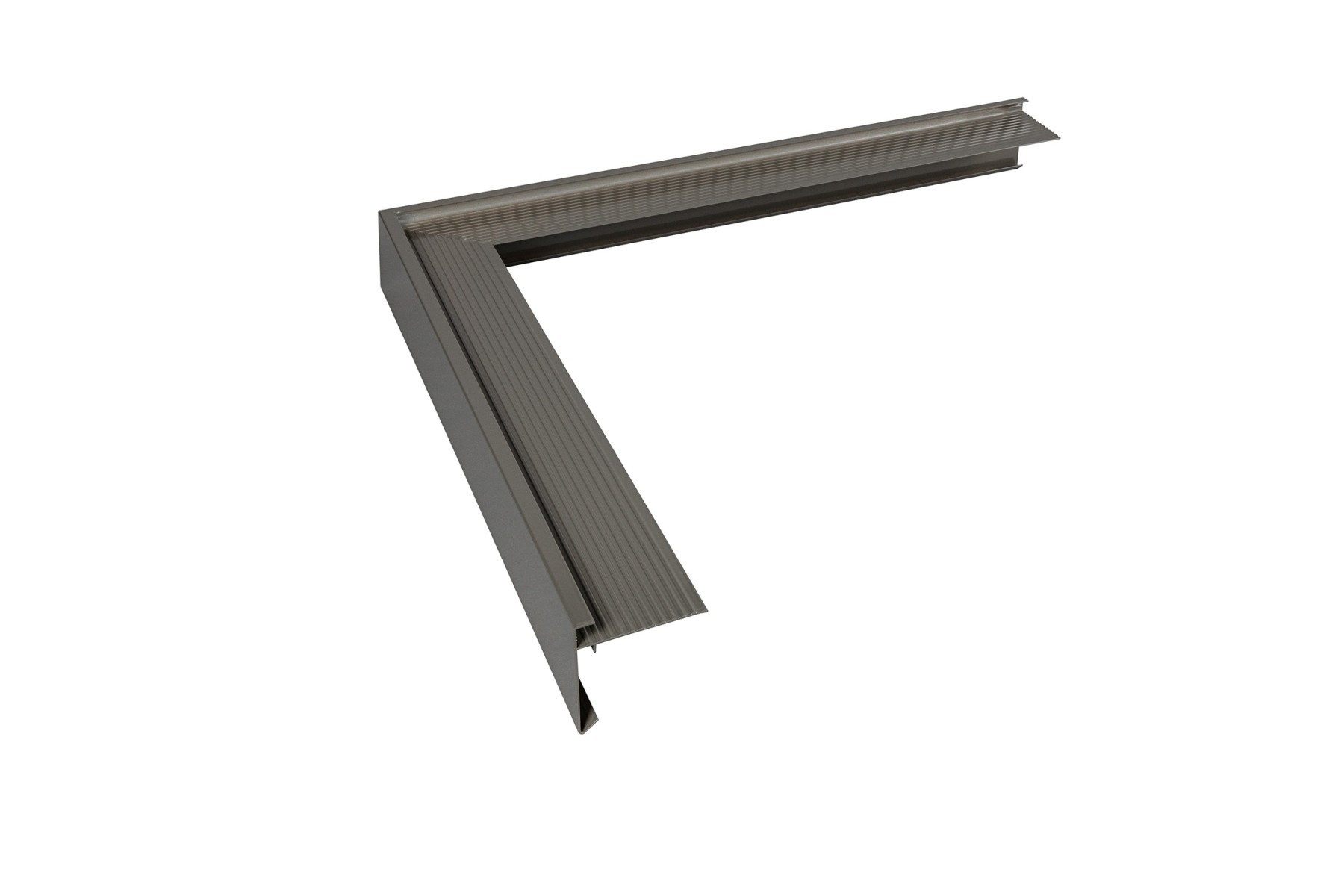

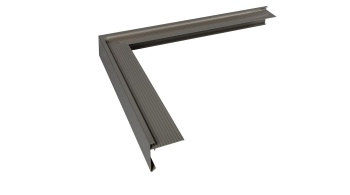

External angle
		Welded corner piece 90º Standard size 500 x 500 mm. Non-standard sizes possible.

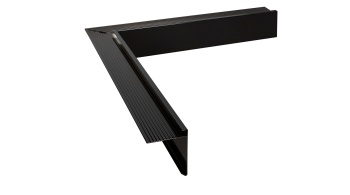

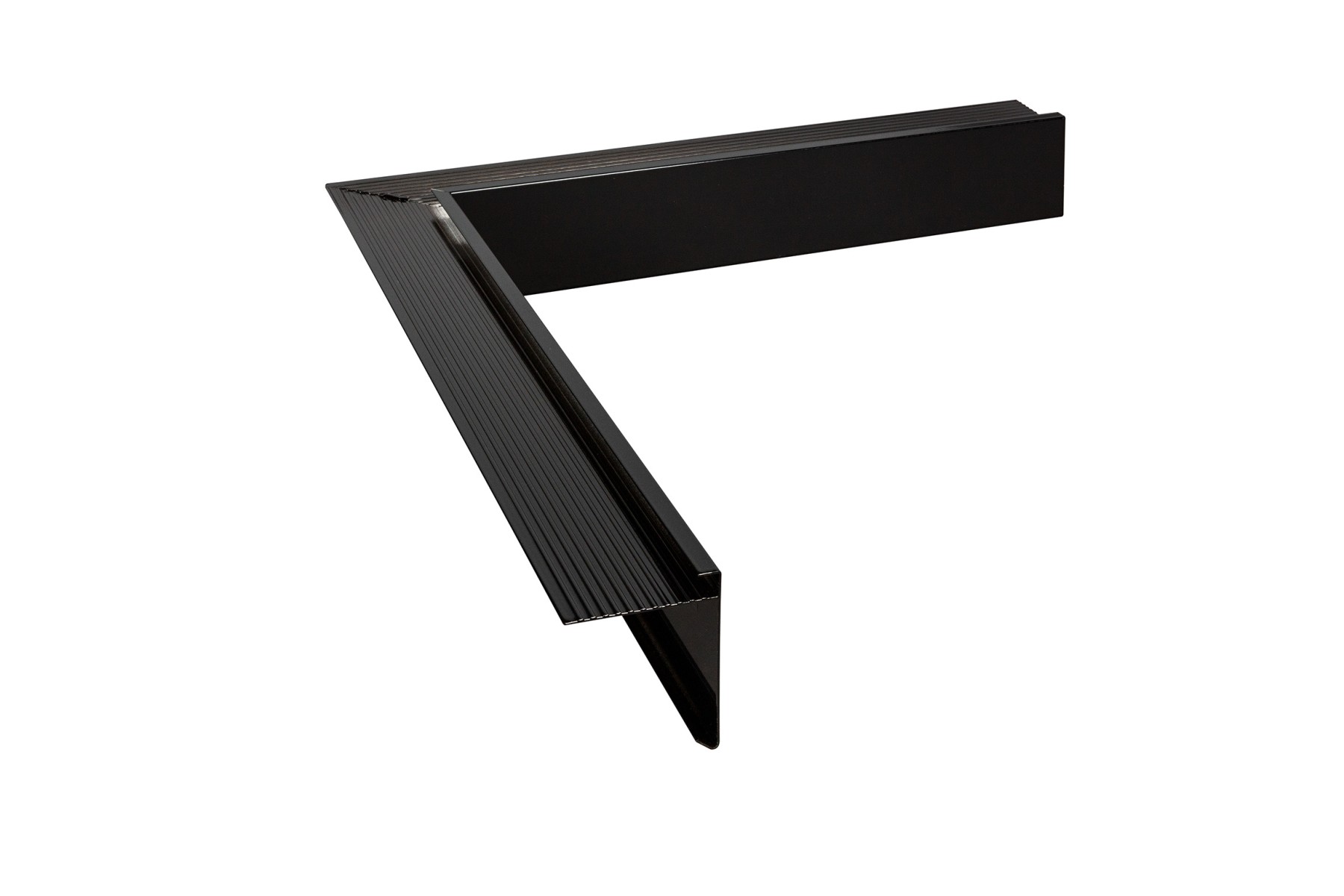

Internal angle
		Welded corner piece 90º Standard size 500 x 500 mm. Non-standard sizes possible.

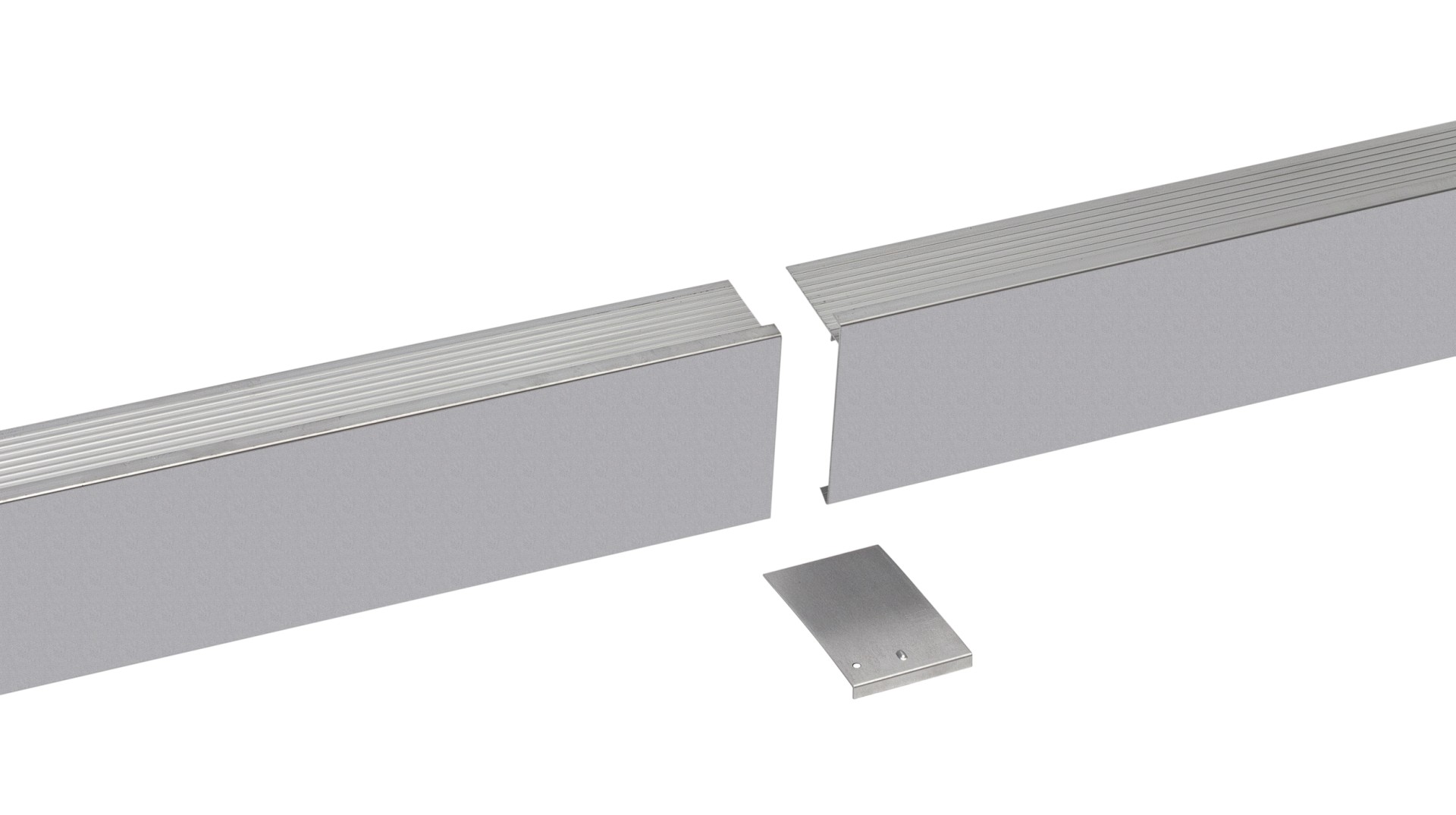

Connecting plate
