Roval-Wave®

Roval-Wave®

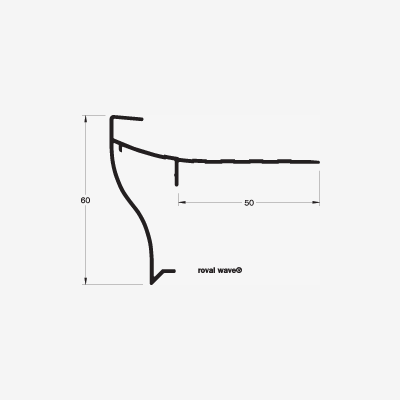

Architectural roof edge. Characterised by a front that changes from convex to hollow. A somewhat provocative model that creates a smooth transit from roof to façade. Item number: Roval 147630. Registered design no. 75155-00.

Item overview

Click on one of the types below for technical drawings and specifications

CAD Specification Profile height Profile width

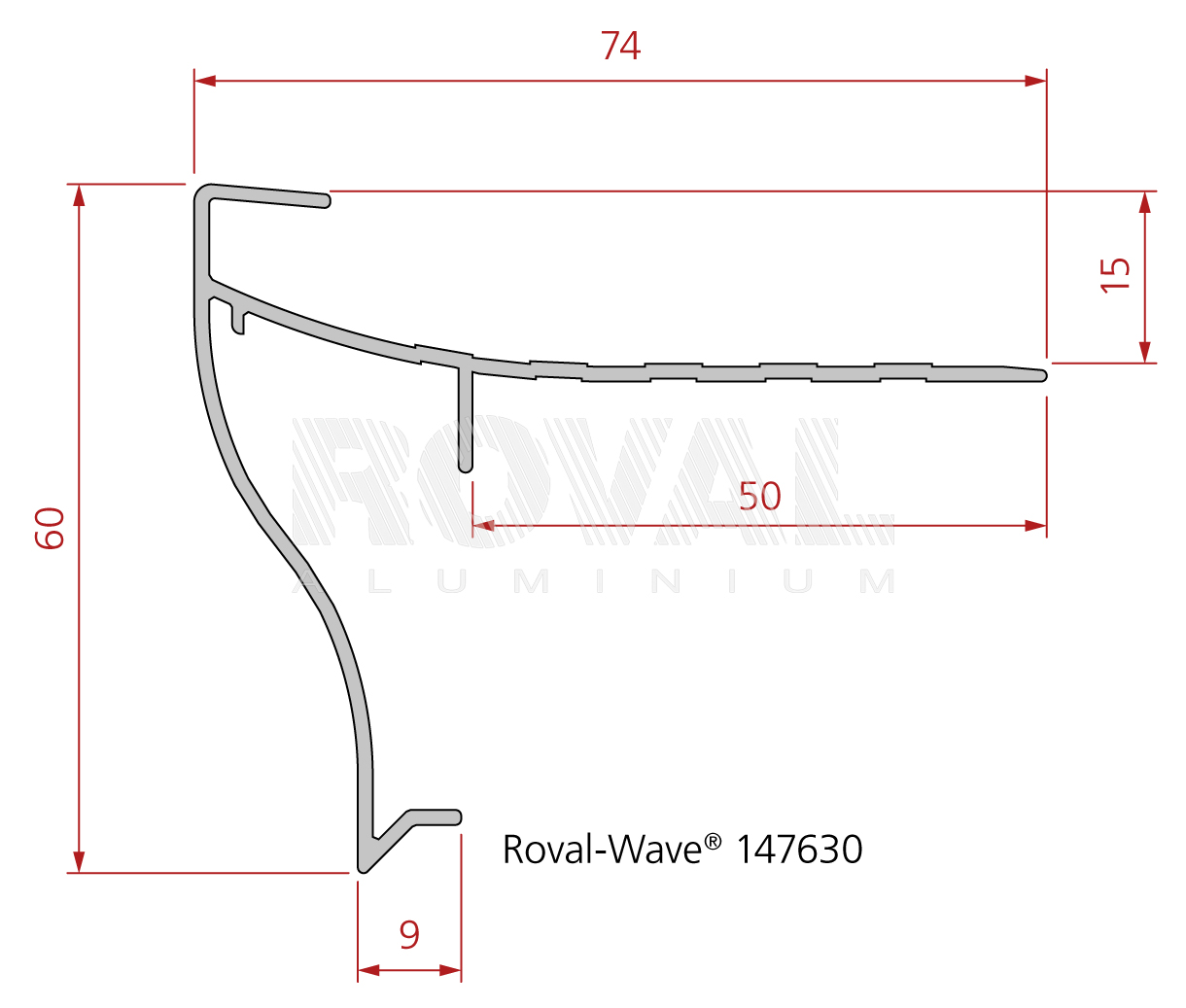

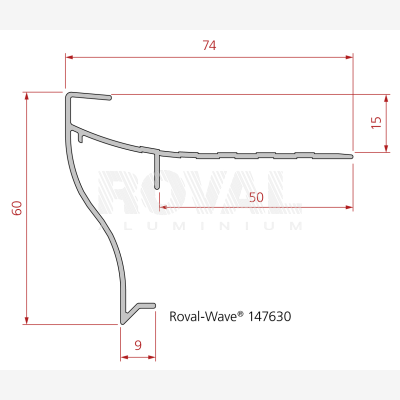

147630 147630 147630 CAD - 60 mm 75/50 mm

View our product warranty terms here

Components:

External angle
  Welded corner piece 90º
Standard size 500 x 500 mm.
Non-standard sizes possible.
Internal angle
  Welded corner piece 90º
Standard size 500 x 500 mm.
Non-standard sizes possible.
Connecting plate
