Roval-Baroque
Available:
- including screw (slotted) holes
- including (welded) bulkheads
- welded mitred corners
- sound-damping insulation
- protective film
- brute, anodized or enamelled versions
- drainage angle of 5º
- maximum length: 6000 mm
Please note! During installation take into account the expansion of aluminium, approx. 1 mm per metre length.
Roval Baroque® sills can be produced from sheet metal in almost any non-standard size. For non-standard sizes, see Sill - Custom made.
Item overview
Click on one of the types below for technical drawings and specifications
| CAD | Specification | Size A | Gradient | Width | Width | ||
|---|---|---|---|---|---|---|---|
|

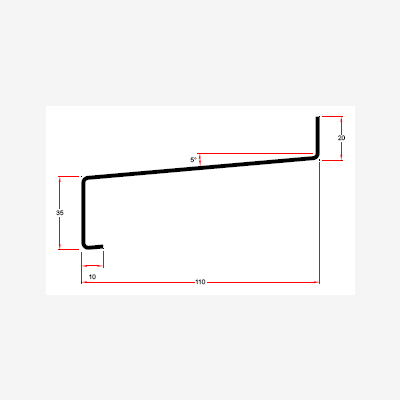

305110
|
- | 110 mm | 5 degrees | mm | mm | |
|

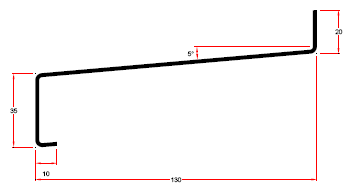

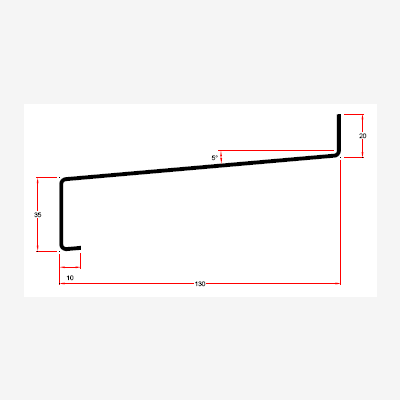

305130
|
- | 130 mm | 5 degrees | mm | mm | |
|

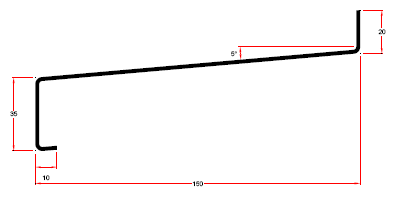

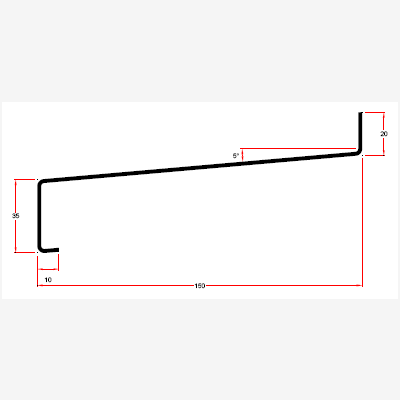

305150
|
- | 150 mm | 5 degrees | mm | mm | |
|

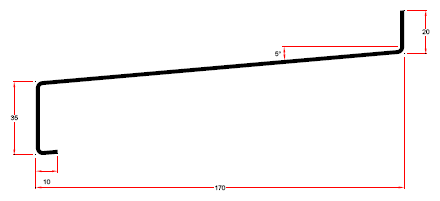

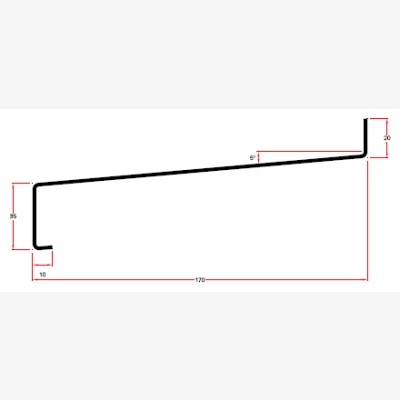

305170
|
- | 170 mm | 5 degrees | mm | mm | |
|

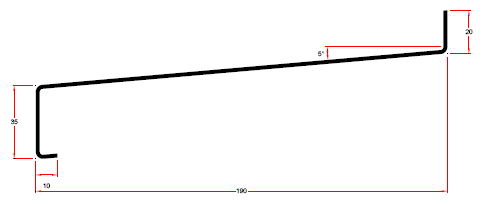

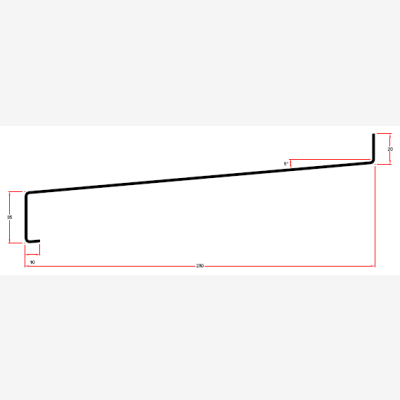

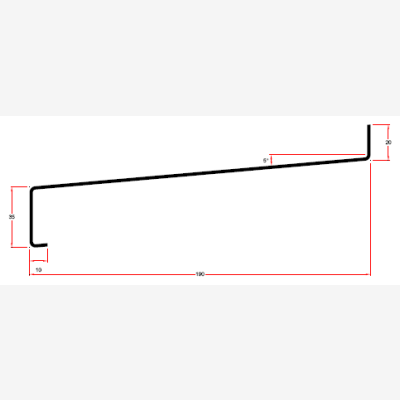

305190
|
- | 190 mm | 5 degrees | mm | mm | |
|

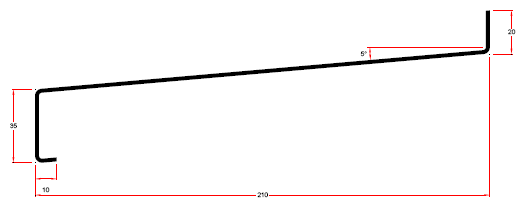

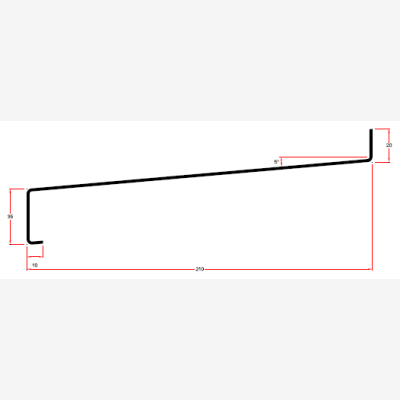

305210
|
- | 210 mm | 5 degrees | mm | mm | |
|

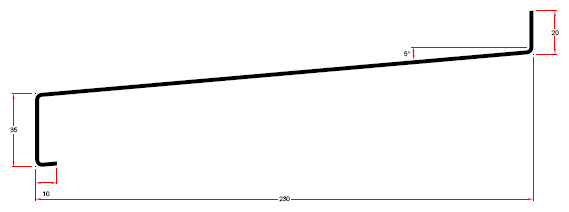

305230
|
- | 230 mm | 5 degrees | mm | mm | |
|

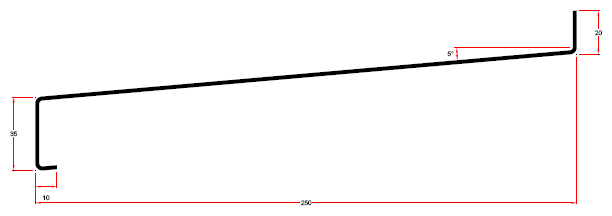

305250
|
- | 250 mm | 5 degrees | mm | mm | |
|

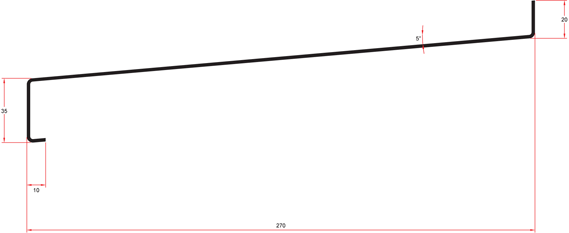

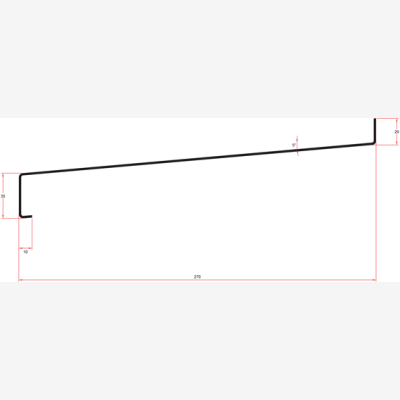

305270
|
- | 270 mm | 5 degrees | mm | mm | |
|

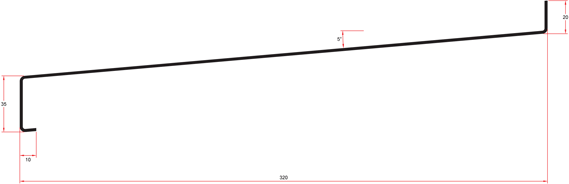

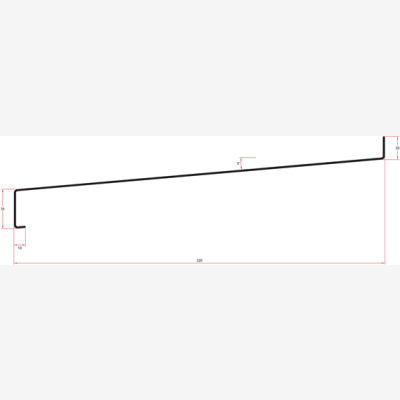

305320
|
- | 320 mm | 5 degrees | mm | mm | |
View our product warranty terms here
Registered design no. 20493
Components:
Bulkheads
- Bulkheads various types
Drain pieces for bulkheads type F, G and H
- A spring for clamping
- B drain piece
- C bulkhead
Coupling plate type 5
- Internal
- A coupling head
- B coupling plate including rubber
Coupling plate type 1
- External
Gelaste verstekhoeken
- For internal and external angles
- Weld seams not ground off
Anchor type IV
- 100 x 30 mm
Anchor type V
- Optional dimensions for outside wall insulation
Rubber seal (Roval 152010)
- For sealing the back of sills
