    Roval-Elegance®

    Roval-Elegance®

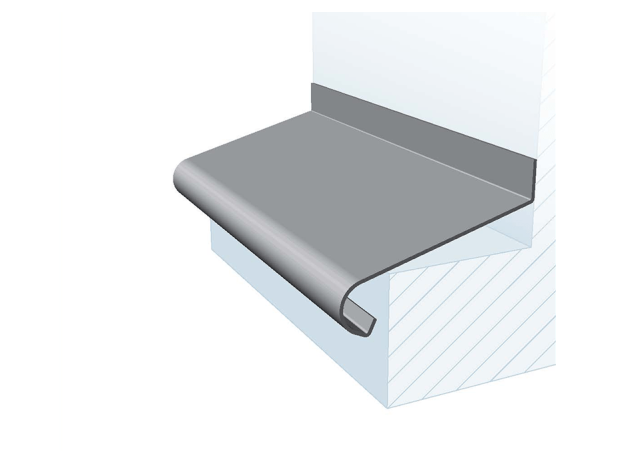

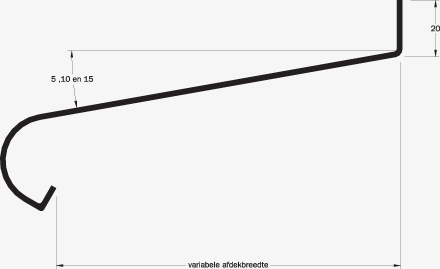

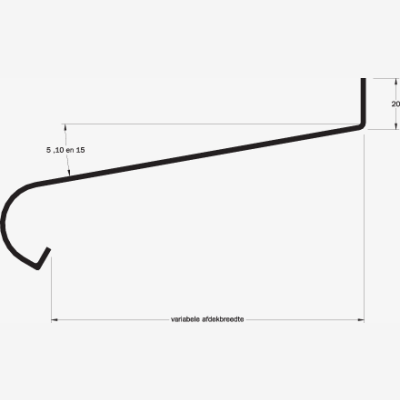

    Sill with a round front. The widths are almost unlimited and one can choose between a drainage angle of 5°, 10° or 15°. Maximum length is 4000 mm.

    Available:
    - including screw (slotted) holes
    - including (welded) bulkheads
    - welded mitred corners
    - protective film
    - sound-damping insulation
    - brute, anodized or enamelled versions

    Item overview

    Click on one of the types below for technical drawings and specifications

    CAD Specification Size A Gradient Width Width
    158020 158020 158020 158020 CAD - mm degrees mm mm

    View our product warranty terms here

    Registered design no. 70379-01/02


    Components:

    Bulkheads

    • Bulkheads various types






    Drain pieces for bulkheads type F

    • A spring for clamping
    • B drain piece
    • C bulkhead


    Coupling plate type 5

    • Internal
    • A coupling head
    • B coupling plate including rubber



    Gelaste verstekhoeken

    • For internal and external angles
    • Weld seams not ground off


    Anchor Elegance

    • Anchor



    Rubber seal
    (Roval 152010)

    • For sealing the back of sills



    Do you need help in making the right choice? Ask one of our specialists

    Contact us or request price quotation directly.
